Vulcan 72SS-8B24G Restaurant Gas Range, 72" W with 8 Burners (1) 24" Griddle and (2) Standard Ovens - 350,000 BTU
Calculate
- Please see specification sheet for installation clearance requirements
Vulcan 72SS-8B24G Specifications
| Burner Type | 30,000 BTU burners |
|---|---|
| Total BTU | 326000 - 400500 |
| BTU | 350,000 BTU |
| Number of Burners | 6 - 8 |
| Quantity of Burners | 8 Burners |
| Range Base Style | Standard Oven |
| Burner Style | Tube |
| Brand | Vulcan |
| Made in | USA |
| Certifications | NSF |
| Vent | Backriser With Hi-shelf |
| Control Type | Manual |
| Oven Type | Standard |
| Legs | 6" adjustable legs |
| Exterior Finish | Stainless Steel Front & Sides |
| Base | Standard Oven |
| BTU per Burner | 30000 |
| Controls | Manual |
| Category | Range, 72" Restaurant, Gas |
| Heat | Gas |
| Range Configuration | (1) 24" Griddle |
| Width (in) | 72 |
| Height (in) | 58 |
| Depth (in) | 34 |
| Weight | 1050.00 |
Additional Information on Vulcan 72SS-8B24G
vul1413b.pdf
service-manual.pdf
parts-manual.pdf
owner-s-manual.pdf
warranty-sheet.pdf
vulcan-72ss-8b24g.specsheet.pdf A PDF viewer is required to view this product's information.
Download Adobe Acrobat software
Vulcan 72SS-8B24G Certifications
NSF
This mark is your assurance that the product has been tested by one of the most respected independent certification organizations in existence today.
Vulcan 72SS-8B24G Description

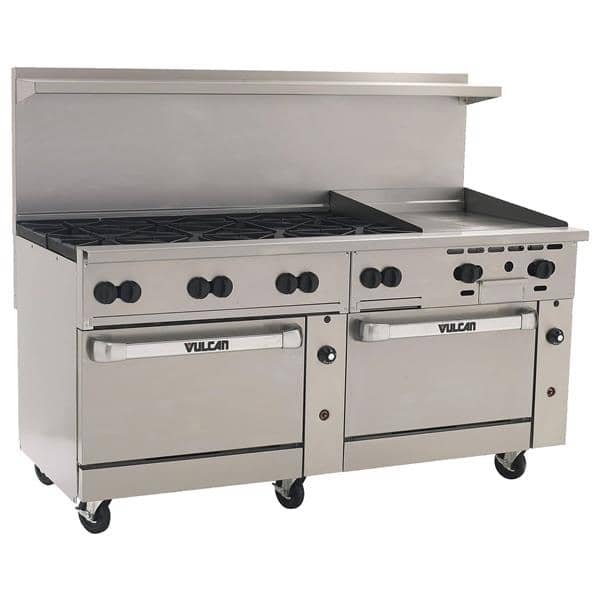

The busiest restaurants need a large range that provides users with versatility and the 72SS-8B24G Endurance™ Restaurant Range from Vulcan delivers on all counts. This restaurant-grade range features a griddle section, a large number of open top burners, and two standard ovens. This range unit is 72” wide and utilizes stainless steel construction for its sides, front, back riser, and high shelf for durability that will ensure it will serve without issue for several years.
The Endurance Series™ from Vulcan offers unrivaled performance for Restaurant Gas Ranges . For excellent durability, this range features an aluminized steel frame that’s fully MIG welded.
With eight open top burners, this range offers users a flexible platform. Vulcan’s flash tube pilot system features shrouded pilots that each cover two burners. This reduces the amount of gas the pilots consume while protecting them against spills and boilovers. The simple lift-off burners are easy to clean and accessing them is simple since the heavy-duty grates also lift-off.
To make handling food on the griddle easy it comes in at 24” wide. To eliminate hot and cold spots while providing plenty of thermal mass, this griddle features a ⅞” thick griddle plate. A 4” wide grease trough fits spatulas for the removal of excess grease and crumbs. A pull-out crumb tray holds excess grease and crumbs and is easily accessible from the front of the range.
Both standard ovens in this range have a 26-⅜” wide opening and full baker’s depth, each cavity has two oven racks with four positions. The oven bottoms and door panels feature porcelain for insulation. These ovens have thermostats that can be set from 250°F to 500°F.
In total, this range consumes 350,000 BTU/hr of gas.
NOTE! This is a general product line video and does not necessarily reflect the listed model.
