The Definitive Guide to Manitowoc Ice Machines

The Definitive Guide to Manitowoc Ice Machines

Manitowoc is one of the leading names in commercial ice making today and for good reason. The world-renowned commercial ice machine manufacturer offers a rich selection of commercial ice machines with new technologies and features to simplify such a crucial part of the food operation. If you are in the market for a new Manitowoc commercial ice machine, use this guide to find the right product for you.

Start by choosing your ice type

Manitowoc commercial ice machines can produce three types of ice cubes (dice, half-dice, and regular) as well as flake, nugget, gourmet, and large gourmet ice. Click on an ice type below and we’ll take you through all the available commercial ice machines sizes for that ice type.

Half-Dice

Half-Dice Size: 0.375" x 1.125" x 0.875"

Dice

Dice Size: 0.875" x 0.875" x 0.875"

Regular

Regular Size: 1.125" x 1.125" x 0.875"

Nugget

Nugget Size: 0.875" to 0.5"

Flake

Flake Size: 0.6" x 0.6"

Gourmet

Gourmet Size: 1.375" x 1.375"


Large Gourmet Size: 2" x 1.5" x 1.75"


DICE ICE MACHINES

Undercounter Dice Ice Machines

NEO® 65/80


Overall Dimensions:

19.69"W x 22.34"D x 36"H

Storage Bin Capacity: 31 lbs.

AIR-COOLED
ModelIce TypeMax Production
UDE-0065ADice57 lbs. 24/HR
UDE-0080ADice102 lbs. 24/HR
NEO® 140/190


Overall Dimensions:

26"W x 28.5"D x 38.5"H

Storage Bin Capacity: 90 lbs.

AIR-COOLED
ModelIce TypeMax Production
UDF-0140ADice135 lbs. 24/HR
UD-0190A (Energy Star)Dice198 lbs. 24/HR
UDF-0190ADice198 lbs. 24/HR
NEO® 240


Overall Dimensions:

26"W x 28.5"D x 38.5"H

Storage Bin Capacity: 90 lbs.

AIR-COOLED
ModelIce TypeMax Production
UDF-0240ADice215 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
UDF-0240WDice197 lbs. 24/HR
NEO® 310


Overall Dimensions:

30"W x 28.5"D x 38.5"H

Storage Bin Capacity: 90 lbs.

AIR-COOLED
ModelIce TypeMax Production
UDF-0310ADice286 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
UDF-0310WDice295 lbs. 24/HR
Modular Dice Ice Machines
INDIGO 300


30"W x 24.5"D x 16.5"H

Recommended Bin:

D-400 (365 lbs. storage capacity)

AIR-COOLED
ModelIce TypeMax Production
ID-0302A (Energy Star)Dice310 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
ID-0303WDice300 lbs. 24/HR
IF0300 INDIGO NXT


Overall Dimensions:

30"W x 24.5"D x 16.5"H

Recommended Bin:

D-400 (360 lbs. storage capacity)

AIR-COOLED
ModelIce TypeMax Production
IDF-0300ADice325 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IDF-0300WDice310 lbs. 24/HR

iT0450 INDIGO NXT


Overall Dimensions:

30"W x 24"D x 21.5"H

Recommended Bin:

D-400 (360 lbs. storage capacity)

AIR-COOLED
ModelIce TypeMax Production

IDT0450A (Energy Star)

Dice470 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IDT0450WDice430 lbs. 24/HR

iT0420 INDIGO NXT


Performance Improvements

(vs previous models):

34% lower condenser water usage

21% lower potable water usage

41% lower energy consumption

Overall Dimensions:

22"W x 24.5"D x 21.5"H

Recommended Bin:

D-320 (264 lbs. storage capacity)

Recommended Ice Dispenser:

SPA-160 (112 lbs.)

AIR-COOLED
ModelIce TypeMax Production

IDT0420A

(Energy Star)

Dice470 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IDT0420WDice454 lbs. 24/HR

iT0620 INDIGO NXT


Performance Improvements

(vs previous models):

31% lower energy consumption

16% lower potable water usage

32% lower condenser water usage

Overall Dimensions:

22"W x 24.5"D x 21.5"H

Recommended Bin:

D-420 (383 lbs. storage capacity)

Recommended Ice Dispenser:

SFA-191 (112 lbs.)

AIR-COOLED
ModelIce TypeMax Production

IDT0620A (Energy Star)

Dice560 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IDT0620WDice530 lbs. 24/HR

INDIGO 606


Overall Dimensions:

30"W x 24.5"D x 21.5"H

Recommended Bin:

D-570 (532 lbs. storage capacity)

AIR-COOLED
ModelIce TypeMax Production

ID-0606A (Energy Star)

Dice632 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
ID-0606WDice661 lbs. 24/HR
REMOTE-COOLED
(use with JC-0895 Condensing Unit)
ModelIce TypeMax Production

ID-0696N (Energy Star)

Dice612 lbs. 24/HR

iF0600 INDIGO NXT


Overall Dimensions:

30"W x 24"D x 21.5"H

Recommended Bin:

D-570 (532 lbs. storage capacity)

AIR-COOLED
ModelIce TypeMax Production
IDF-0600ADice632 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IDF-0600WDice661 lbs. 24/HR
REMOTE-COOLED
(use with JCF-0900 Condensing Unit)
ModelIce TypeMax Production
IDF-0600NDice612 lbs. 24/HR

INDIGO 906


Overall Dimensions:

30"W x 24.5"D x 26.5"H

Recommended Bin:

D-570 (532 lbs. storage capacity)

REMOTE-COOLED
(use with JC-0995 Condensing Unit)
ModelIce TypeMax Production

ID-0996N

(Energy Star)

Dice821 lbs. 24/HR

iF0900 INDIGO NXT


Overall Dimensions:

30"W x 24.5"D x 26.5"H

Recommended Bin:

D-570 (532 lbs. storage capacity)

AIR-COOLED
ModelIce TypeMax Production
IDF-0900ADice874 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IDF-0900WDice839 lbs. 24/HR
REMOTE-COOLED
(use with JCF-0900 Condensing Unit)
ModelIce TypeMax Production

IDF-0900N

(Energy Star)

Dice821 lbs. 24/HR

iT1200 INDIGO NXT


Overall Dimensions:

30"W x 24.5"D x 29.5"H

Recommended Bin:

D-570 (532 lbs. storage capacity)

AIR-COOLED
ModelIce TypeMax Production
IDT1200ADice1,196 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IDT1200WDice1,078 lbs. 24/HR
REMOTE-COOLED
(use ith JCT-1200 Condensing Unit)
ModelIce TypeMax Production
IDT1200NDice1,127 lbs. 24/HR

iT1500 INDIGO NXT


Overall Dimensions:

48"W x 24"D x 29.5"H

Recommended Bin:

D-970 (882 lbs. of storage capacity)

AIR-COOLED
ModelIce TypeMax Production
IDT1500ADice1,688 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IDT1500WDice1,615 lbs. 24/HR
REMOTE-COOLED
(use with JCT-1500 Condensing Unit)
ModelIce TypeMax Production

IDT1500N

(Energy Star)

Dice1,675 lbs. 24/HR

iT1900 INDIGO NXT


Overall Dimensions:

48"W x 24"D x 29.5"H

Recommended Bin:

D-970 (882 lbs. of storage capacity)

AIR-COOLED
ModelIce TypeMax Production
IDT1900ADice1,900 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IDT1900WDice1,770 lbs. 24/HR
REMOTE-COOLED
(use with JCT-1500 Condensing Unit)
ModelIce TypeMax Production

IDT1900N (Energy Star)

Dice1,815 lbs. 24/HR

QUIETQUBE® iT1200C


Improved Performance

(vs. previous models):

10% increase in ice production

8% reduction in energy consumption

Overall Dimensions:

30"W x 24.5"D x 29.5"H

Recommended Bin:

D-970 (882 lbs. of storage capacity)

REMOTE-COOLED
(use with CVDT-1200A Condenser Unit)
ModelIce TypeMax Production
IDT1200CDice1,140 lbs. 24/HR

QUIETQUBE iF1400C


Overall Dimensions:

30"W x 24.5"D x 25"H

Recommended Bin:

D-970 (single)

F-1650 (double)

REMOTE-COOLED
(use with CVDF1400 Condenser Unit)
ModelIce TypeMax Production
IDF1400CDice1,350 lbs. 24/HR

QUIETQUBE iF1800C


Overall Dimensions:

30"W x 24.5"D x 29.5"H

Recommended Bin:

D-970 (single)

F-1650 (double)

REMOTE-COOLED
(use with CVDF1800 Condenser Unit)
ModelIce TypeMax Production
IDF1800CDice1,660 lbs. 24/HR

QUIETQUBE iF2100C


Overall Dimensions:

30"W x 24.5"D x 29.5"H

Recommended Bin:

D-970 (single)

F-1650 (double)

REMOTE-COOLED
(use with CVDF2100 Condenser Unit)
ModelIce TypeMax Production
IDF2100CDice1,800 lbs. 24/HR
Marine Series Modular Dice Ice Makers
Designed for use on a yacht, ship, or anywhere near saltwater

IF0600WM


Overall Dimensions:

30"W x 24.5"D x 21.5"H

Recommended Bin:

IBW-M4 Marine Bin

WATER-COOLED
ModelIce TypeMax Production

IDF0600WM

Dice

661 lbs. 24/HR

IT0750WM


Overall Dimensions:

30"W x 24.5"D x 21.5"H

Recommended Bin:

IBW-M4 Marine Bin

WATER-COOLED
ModelIce TypeMax Production
IDT0750WMDice703 lbs. 24/HR

IT0900WM


Overall Dimensions:

30"W x 24.5"D x 26.5"H

Recommended Bin:

IBW-M4 Marine Bin

WATER-COOLED
ModelIce TypeMax Production
IDT0900WMDice780 lbs. 24/HR

IF0900WM


Overall Dimensions:

30"W x 24.5"D x 26.5"H

Recommended Bin:

IBW-M4 Marine Bin

WATER-COOLED
ModelIce TypeMax Production
IDF0900WMDice839 lbs. 24/HR

IT1900WM


Overall Dimensions:

48"W x 24.5"D x 29.5"H

Recommended Bin:

IBW-M4 Marine Bin

WATER-COOLED
ModelIce TypeMax Production
IDT1900WMDice1,870 lbs. 24/HR
SpaceMaker Marine Ice Machines

SpaceMaker™ IT0900W

(bin sold separately)


Overall Dimensions:

30"W x 23.5"D x 26.5"H

Recommended Bin:

IBW-M4 Marine Bin

WATER-COOLED
ModelIce TypeMax Production
IDT0900WDice780 lbs. 24/HR

SpaceMaker™ IF0900W

(bin sold separately)


Overall Dimensions:

30"W x 23.5" D x 26.5"H

Recommended Bin:

IBW-M4 Marine Bin

WATER-COOLED
ModelIce TypeMax Production
IDF0900WDice830 lbs. 24/HR

SpaceMaker™ IT1900W

(bin sold separately)


Overall Dimensions:

48"W x 23.5"D x 29.5"H

Recommended Bin:

IBW-M5 Marine Bin

WATER-COOLED
ModelIce TypeMax Production
IDT1900WDice1,870 lbs. 24/HR
QuadZilla Dice Ice Machines

SF-3000C


Overall Dimensions:

48"W x 31"D x 36"H

Recommended Bin/s:

F-1300 (1,194 lbs.)

F-1325 (1,238 lbs.)


REMOTE-COOLED

(use with CVDF-3000 Condensing Unit)

ModelIce TypeMax Production
SDF-3000CDice2,850 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
SDT-3000WDice3,000 lbs. 24/HR

HALF-DICE ICE MACHINES

Undercounter Half-Dice Ice Machines

NEO® 140/190


Overall Dimensions:

26"W x 28.5"D x 38.5"H

Storage Bin Capacity: 90 lbs

AIR-COOLED
ModelIce TypeMax Production
UYF-0140AHalf-dice137 lbs. 24/HR
UYF-0190AHalf-dice193 lbs. 24/HR

NEO® 240


Overall Dimensions:

26"W x 28.5"D x 38.5"H

Storage Bin Capacity: 90 lbs

AIR-COOLED
ModelIce TypeMax Production
UYF-0240AHalf-dice219 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
UYF-0240WHalf-dice207 lbs. 24/HR

NEO® 310


Overall Dimensions:

30"W x 28.5"D x 38.5"H

Storage Bin Capacity: 90 lbs

AIR-COOLED
ModelIce TypeMax Production
UYF-0310AHalf-dice290 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
UYF-0310WHalf-dice293 lbs. 24/HR
Modular Half-Dice Ice Machines

INDIGO 300


Overall Dimensions:

30"W x 24.5"D x 16.5"H

Recommended Bin:

D-400 (365 lbs. storage capacity)

AIR-COOLED
ModelIce TypeMax Production

IY-0304A (Energy Star)

Half-dice310 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IY-0305WHalf-dice300 lbs. 24/HR

iF0300 INDIGO NXT


Overall Dimensions:

30"W x 24.5"D x 16.5"H

Recommended Bin:

D-400 (360 lbs. storage capacity)

AIR-COOLED
ModelIce TypeMax Production
IYF-0300AHalf-dice325 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IYF-0300WHalf-dice310 lbs. 24/HR

iT0420 INDIGO NXT


Performance Improvements

(vs previous models):

34% lower condenser water usage

21% lower potable water usage

41% lower energy consumption

Overall Dimensions:

22"W x 24.5"D x 21.5"H

Recommended Bin:

D-320 (264 lbs. storage capacity)

Recommended Ice Dispenser:

SPA-160 (112 lbs.)

AIR-COOLED
ModelIce TypeMax Production

IYT0420A (Energy Star)

Half-dice460 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IYT0420WHalf-dice490 lbs. 24/HR

iT0450 INDIGO NXT


Overall Dimensions:

30"W x 24"D x 21.5"H

Recommended Bin:

D-400 (360 lbs. storage capacity)

AIR-COOLED
ModelIce TypeMax Production

IYT0450A

(Energy Star)

Half-dice490 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IYT0450WHalf-dice470 lbs. 24/HR

iT0620 INDIGO NXT


Performance Improvements

(vs previous models):

32% lower condenser water usage

16% lower potable water usage

31% lower energy consumption

Overall Dimensions:

22"W x 24.5"D x 21.5"H

Recommended Bin:

D-420 (383 lbs. storage capacity)

Recommended Ice Dispenser:

SFA-191 (112 lbs.)

AIR-COOLED
ModelIce TypeMax Production

IYT0620A

(Energy Star)

Half-dice575 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IYT0620WHalf-dice560 lbs. 24/HR

iT0500 INDIGO NXT


Overall Dimensions:

30"W x 24"D x 21.5"H

Recommended Bin:

D-570 (532 lbs. storage capacity)

AIR-COOLED
ModelIce TypeMax Production

IYT0500A (Energy Star)

Half-dice550 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IYT0500WHalf-dice535 lbs. 24/HR

REMOTE-COOLED

(use with JCT-0500 Condensing Unit)

ModelIce TypeMax Production

IYT0500N (Energy Star)

Half-dice510 lbs. 24/HR

INDIGO 606


Overall Dimensions:

30"W x 24.5"D x 21.5"H

Recommended Bin:

D-570 (532 lbs. storage capacity)

AIR-COOLED
ModelIce TypeMax Production

IY-0606A (Energy Star)

Half-dice635 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IY-0606WHalf-dice700 lbs. 24/HR

REMOTE-COOLED (use with JC-0895 Condensing Unit)

ModelIce TypeMax Production

IY-0696N (Energy Star)

Half-dice642 lbs. 24/HR

iF0600 INDIGO NXT


Overall Dimensions:

30"W x 24"D x 21.5"H

Recommended Bin:

D-570 (532 lbs. storage capacity)

AIR-COOLED
ModelIce TypeMax Production
IYF-0600AHalf-dice650 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IYF-0600WHalf-dice700 lbs. 24/HR

REMOTE-COOLED

(use with JCF-0900 Condensing Unit)

ModelIce TypeMax Production
IYF-0600NHalf-dice642 lbs. 24/HR

iT0900 INDIGO NXT


Overall Dimensions:

30"W x 24.5"D x 26.5"H

Recommended Bin:

D-570 (532 lbs. storage capacity

AIR-COOLED
ModelIce TypeMax Production

IYT0900A

(Energy Star)

Half-dice865 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IYT0900WHalf-dice722 lbs. 24/HR

iF0900 INDIGO NXT


Overall Dimensions:

30"W x 24.5"D x 26.5"H

Recommended Bin:

D-570 (532 lbs. storage capacity)

AIR-COOLED
ModelIce TypeMax Production
IYF-0900AHalf-dice901 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IYF-0900WHalf-dice879 lbs. 24/HR

REMOTE-COOLED (use with JCF-0900 Condensing Unit)

ModelIce TypeMax Production
IYF-0900NHalf-dice855 lbs. 24/HR

iT1200 INDIGO NXT


Overall Dimensions:

30"W x 24.5"D x 29.5"H

Recommended Bin:

D-570 (532 lbs. storage capacity)

AIR-COOLED
ModelIce TypeMax Production
IYT1200AHalf-dice1,213 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IYT1200WHalf-dice1,138 lbs. 24/HR

REMOTE-COOLED

(use with JCT-1200A Condensing Unit)

ModelIce TypeMax Production
IYT1200NHalf-dice1,215 lbs. 24/HR

iT1500 INDIGO NXT


Overall Dimensions:

48"W x 24"D x 29.5"H

Recommended Bin:

D-970 (882 lbs. of storage capacity)

AIR-COOLED
ModelIce TypeMax Production
IYT1500AHalf-dice1,660 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IYT1500WHalf-dice1,590 lbs. 24/HR

REMOTE-COOLED

(use with JCT-1500 Condensing Unit)

ModelIce TypeMax Production
IYT1500NHalf-dice1,700 lbs. 24/HR

iT1900 INDIGO NXT


Overall Dimensions:

48"W x 24"D x 29.5"H

Recommended Bin:

D-970 (882 lbs. of storage capacity)

AIR-COOLED
ModelIce TypeMax Production
IYT1900AHalf-dice1,900 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IYT1900WHalf-dice1,740 lbs. 24/HR

REMOTE-COOLED

(use with JCT-1500 Remote Condenser)

ModelIce TypeMax Production
IYT1900NHalf-dice1,800 lbs. 24/HR

QUIETQUBE® iT1200C


Improved Performance

(vs. previous models):

10% increase in ice production

8% reduction in energy consumption

Overall Dimensions:

30"W x 24.5"D x 29.5"H

Recommended Bin:

D-970 (882 lbs. of storage capacity)

REMOTE-COOLED

(use with CVDT1200A Condensing Unit)

ModelIce TypeMax Production
IYT1200CHalf-dice1,215 lbs. 24/HR

QUIETQUBE® iF1400C


Overall Dimensions:

30"W x 24.5"D x 25"H

Recommended Bin:

D-970 (single)

F-1650 (double)

REMOTE-COOLED

(use with CVDF1400 Condensing Unit)

ModelIce TypeMax Production
IYF1400CHalf-dice1,350 lbs. 24/HR

QUIETQUBE® iF1800C


Overall Dimensions:

30"W x 24.5"D x 29.5"H

Recommended Bin:

D-970 (single)

F-1650 (double)

REMOTE-COOLED

(use with CVDF1800 Condensing Unit)

ModelIce TypeMax Production
IYF1800CHalf-dice1,660 lbs. 24/HR

QUIETQUBE® iF2100C


Overall Dimensions:

30"W x 24.5"D x 29.5"H

Recommended Bin:

D-970 (single)

F-1650 (double)

REMOTE-COOLED

(use with CVDF2100 Condensing Unit)

ModelIce TypeMax Production
IYF2100CHalf-dice1,800 lbs. 24/HR
Marine Modular Half-Dice Ice Machines
Designed for use on a yacht, ship, or anywhere near saltwater

IT0900WM


Overall Dimensions:

30"W x 24.5" D x 26.5"H

Recommended Bin:

IBW-M4 Marine Bin

WATER-COOLED
ModelIce TypeMax Production
IYT0900WMHalf-dice722 lbs. 24/HR

IF0900WM


Overall Dimensions:

30"W x 24.5"D x 26.5"H

Recommended Bin:

IBW-M4 Marine Bin

WATER-COOLED
ModelIce TypeMax Production
IYF0900WMHalf-dice879 lbs. 24/HR

IT1900WM


Overall Dimensions:

48"W x 24.5"D x 29.5"H

Recommended Bin:

IBW-M4 Marine Bin

WATER-COOLED
ModelIce TypeMax Production
IYT1900WMHalf-dice1,930 lbs. 24/HR
SpaceMaker Marine Series

SpaceMaker™ IT0900W

(bin sold separately)


Overall Dimensions:

30"W x 23.5" D x 26.5"H

Recommended Bin:

IBW-M4 Marine Bin

WATER-COOLED
ModelIce TypeMax Production
IYT0900WHalf-dice722 lbs. 24/HR

SpaceMaker™ IF0900W

(bin sold separately)


Overall Dimensions:

30"W x 24.5" D x 26.5"H

Recommended Bin:

IBW-M4 Marine Bin

WATER-COOLED
ModelIce TypeMax Production
IYF0900WHalf-dice879 lbs. 24/HR

SpaceMaker™ IT1900W

(bin sold separately)


Overall Dimensions:

48"W x 23.5"D x 29.5"H

Recommended Bin:

IBW-M5 Marine Bin

WATER-COOLED
ModelIce TypeMax Production
IYT1900WHalf-dice1,930 lbs. 24/HR
Ice/Beverage Series
Specifically designed for beverage/soda dispensers

IBF SERIES


REMOTE-COOLED
Model:

IBF-0620C (dispenser sold separately)

IBF-0820C (dispenser sold separately)

Max Production:625 lbs. 24/HR825 lbs. 24/HR
Recommended Condenser:CVDF-0600CVDF-0900
Recommended Dispenser:Servend SV-250Servend SV-250

IB SERIES


Overall Dimensions:

22"W x 14"D x 24"H


Overall Dimensions:

22"W x 14"D x 24"H22"W x 14"D x 26.5"H
REMOTE-COOLED
Model:IB-0696YC(dispenser sold separately)IB-0894YC (dispenser sold separately)
Max Production:640 lbs. 24/HR865 lbs. 24/HR
Recommended Condenser:ICVD-0696ICVD-0996
Recommended Dispenser:Servend SV-250Servend SV-250

IBT SERIES


Overall Dimensions:

22"W x 24"D x 30.5"H

REMOTE-COOLED
Model

IBT-1020C (dispenser sold separately)

Max Production:

1,206 lbs. 24/HR

Recommended Condenser:

CVDT-1200A

Recommended Dispenser:Servend SV-250
QuadZilla Half-Dice Ice Machines

QUADZILLA SF-3000C


Overall Dimensions:

48"W x 31"D x 36"H

Recommended Bin/s:

F-1300 (1,194 lbs.)

F-1325 (1,238 lbs.)

REMOTE-COOLED

(use with CVDF-3000 Condensing Unit)

ModelIce TypeMax Production
SYF-3000CHalf-dice2,950 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
SYT-3000WHalf-dice3,200 lbs. 24/HR

REGULAR ICE MACHINES

Undercounter Regular Ice Machines

NEO® 140/190


Overall Dimensions:

26"W x 28.5"D x 38.5"H

Storage Capacity: 90 lbs.

AIR-COOLED
ModelIce TypeMax Production
URF-0140ARegular127 lbs. 24/HR

NEO® 310


Overall Dimensions:

30"W x 28.5"D x 38.5"H

Storage Capacity: 90 lbs.

AIR-COOLED
ModelIce TypeMax Production
URF-0310ARegular278 lbs. 24/HR
Modular Regular Ice Machines

iT0500 INDIGO NXT


Overall Dimensions:

30"W x 24"D x 21.5"H

Recommended Bin:

D-570 (532 lbs. storage capacity)

AIR-COOLED
ModelIce TypeMax Production

IRT0500A (Energy Star)

Regular500 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IRT0500WRegular500 lbs. 24/HR

iT0620 INDIGO NXT


Performance Improvements

(vs previous models):

31% lower energy consumption

16% lower potable water usage

32% lower condenser water usage

Overall Dimensions:

22"W x 24.5"D x 21.5"H

Recommended Bin:

D-420 (383 lbs. storage capacity)

Recommended Ice Dispenser:

SFA-191 (112 lbs.)

AIR-COOLED
ModelIce TypeMax Production

IRT0620A

(Energy Star)

Regular525 lbs. 24/HR

iF0900 INDIGO NXT


Overall Dimensions:

30"W x 24.5"D x 26.5"H

Recommended Bin:

D-570 (532 lbs. storage capacity)

AIR-COOLED
ModelIce TypeMax Production
IRF-0900ARegular797 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IRF-0900WRegular773 lbs. 24/HR

iT0900 INDIGO NXT


Overall Dimensions:

30"W x 24.5"D x 26.5"H

Recommended Bin:

D-570 (532 lbs. storage capacity)

AIR-COOLED
ModelIce TypeMax Production
IRT0900ARegular797 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
IRT0900WRegular748 lbs. 24/HR

iT1900 INDIGO NXT


Overall Dimensions:

48"W x 24"D x 29.5"H

Recommended Bin:

D-970 (882 lbs. of storage capacity)

AIR-COOLED
ModelIce TypeMax Production
IRT1900ARegular1,800 lbs. 24/HR

REMOTE-COOLED

(use with JCT-1500 Condenser)

ModelIce TypeMax Production
IRT1900NRegular1,715 lbs. 24/HR

FLAKE ICE MACHINES

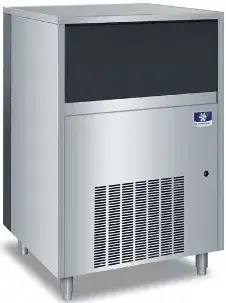

Undercounter Flake Ice Machines



Model

UFF0200A

UFF0350A

Energy Star



Max Production257 lbs. 24/HR350 lbs. 24/HR
Bin Capacity50 lbs.90 lbs.
Width19.69"29.06"
Height37.50"39.52"
Depth25.98"25.98"
Modular Flake Ice Machines

RFF0320


Overall Dimensions:

22"W x 23.63"D x 26"H

Recommended Bin:

D-420 (383 lbs. storage capacity)

Height with bin: 76"

Depth with bin: 34"

AIR-COOLED
ModelIce TypeMax Production
RFF0320AFlake370 lbs. 24/HR

RFF0620


Overall Dimensions:

22"W x 23.63"D x 26"H

Recommended Bin:

D-420 (383 lbs. storage capacity)

Height with bin: 76"

Depth with bin: 34"

AIR-COOLED
ModelIce TypeMax Production
RFF0620AFlake760 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
RFF0620WFlake730 lbs. 24/HR

RFF1220C


Overall Dimensions:

22"W x 23.63"D x 26"H

Recommended Bin:

D-570 D-970 F-700 F-1325 FC-1350

REMOTE-COOLED

(use with RCUF-1200 Condensing Unit)

ModelIce TypeMax Production
RFF1220CFlake1,152 lbs. 24/HR

RFF1300


Overall Dimensions:

22"W x 23.63"D x 27.40"H

Recommended Bin:

D-570 (532 lbs. storage capacity)

Height with bin: 77.40"

Depth with bin: 34"

AIR-COOLED
ModelIce TypeMax Production
RFF1300AFlake1,287 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
RFF1300WFlake1,339 lbs. 24/HR

RFF2200


Overall Dimensions:

30"W x 23.63"D x 27.40"H

Recommended Bin:

D-570 D-970 F-700 F-1325 FC-1350

REMOTE-COOLED (use with RCUF-2200 Condensing Unit)

ModelIce TypeMax Production
RFF2220CFlake2,169 lbs. 24/HR

RFF2500


Overall Dimensions:

36.77"W x 26.92"D x 27.56"H

Recommended Bin:

F-1300 (1,320 lbs. storage capacity)

F-1650 (1,660 lbs. storage capacity)

Height with bin: 91.06"

Depth with bin: 31"

AIR-COOLED
ModelIce TypeMax Production
RFF2500AFlake2,460 lbs. 24/HR

NUGGET ICE MACHINES

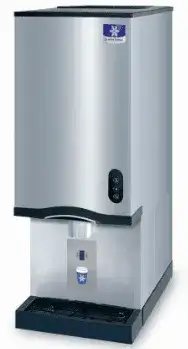

Countertop Nugget Ice Machines

ModelCNF0201ACNF0201ALCNF0202ACNF0202AL
Max Production315 lbs. 24/HR315 lbs. 24/HR315 lbs. 24/HR315 lbs. 24/HR
Dispensing TypeTouchlessLever-activatedTouchlessLever-activated
Bin Capacity10 lbs.10 lbs.20 lbs.20 lbs.
Width16.25"16.25"16.25"16.25"
Height35"35"42"42"
Depth24"24"24"24"
Undercounter Nugget Ice Machines



ModelUNF0200AUNF0300A
Max Production187 lbs. 24/HR300 lbs. 24/HR

Bin Storage Capacity

20 lbs. 24/HR50 lbs. 24/HR
Width19.69"29.06"
Height33.17"39.52"
Depth25.98"27.17"
Energy Star



Modular Nugget Ice Machines

RNF0320


Overall Dimensions:

22"W x 26.63"D x 26"H

Recommended Bin:

D-420 (383 lbs. storage capacity)

Height with bin: 76"

Depth with bin: 34

AIR-COOLED
ModelIce TypeMax Production
RNF0320ANugget308 lbs. 24/HR

RNF0620


Overall Dimensions:

22"W x 23.63"D x 26"H

Recommended Bin:

D-420 (383 lbs. storage capacity)

Height with bin: 76"

Depth with bin: 34"

AIR-COOLED
ModelIce TypeMax Production
RNF0620ANugget591 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
RNF0620WNugget613 lbs. 24/HR

RNF1100


Overall Dimensions:

30"W x 23.62"D x 27.40"H

Recommended Bin:

D-570 (532 lbs. storage capacity)

Height with bin: 77.40"

Depth with bin: 34"

AIR-COOLED
ModelIce TypeMax Production
RNF1100ANugget1,078 lbs. 24/HR
WATER-COOLED
ModelIce TypeMax Production
RNF1100WNugget1,158 lbs. 24/HR

GOURMET ICE MACHINES

Undercounter Gourmet Ice Machines





ModelUG-20UG-30UG-40UG-50UG-65UG-80
Max Production22 kgs. 24/HR31 kgs. 24/HR45 kgs. 24/HR55 kgs. 24/HR67 kgs. 24/HR86 kgs. 24/HR
Storage Capacity5.5 kgs.5.5 kgs.14 kgs.14 kgs.30 kgs.30 kgs.
Width45 cm45 cm55 cm55 cm70 cm70 cm
Height47.5 cm47.5 cm55 cm55 cm60 cm60 cm
Depth65 cm65 cm80 cm80 cm90 cm90 cm

LARGE GOURMET ICE MACHINE

BG-0260A Large Gourmet Ice Machine

ModelBG-0260A
Max Production306 lbs. 24/HR
Bin Storage Capacity143 lbs.
Ice TypeLarge Gourmet
Cooling SystemAir-cooled
Width22"
Height34"
Depth27.40"

How much ice do you need?

To compute your daily ice usage, multiply the approximate amount of ice consumption per individual to the number of people you serve daily. Here is a general reference guide you can use:

Restaurant:1.5 lbs.
Cafeteria:1 lb
Bar/Cocktail:3 lbs.
Fastfood/Quick-service:10 oz.
Hospital:10 lbs.
Convenience Store:12 oz.

Once you determine your daily ice usage, click on the commercial ice machine type that fits your need to find the specific model for your operation.

TIP: Keep in mind that the listed 24-hour Max Production for each machine is based on perfect air and water conditions. It is recommended that you upgrade to the next larger size if you anticipate an increase in the demand or if you don’t have perfect conditions for ice making.

UNDERCOUNTER
For ice production 300 lbs. and under

  • Limited space can’t accommodate taller machines
  • In need of supplemental ice
  • Restaurants, cafes, bars, coffee shops, delis
  • Offices, healthcare centers, stadium boxes, churches


Manitowoc’s NEO undercounter cubers are made for small ice production. They represent a major step-up in the performance department compared to the previous models, boasting an increase in ice production while reducing water and energy consumption.

NEO undercounter machines feature an indicator panel on the front. The icons light up when activated so you can easily see what the commercial ice machine is up to.

A “delay” function enables operators to stop ice making for 4, 12, or 24 hours, which comes in handy when an establishment is closed or only open for shorter hours than usual. After the delay, the commercial ice machine automatically resumes ice production.

MODULAR
For large ice production up to 2,000+

  • Comes in a variety of sizes and configurations
  • Air-cooled, water-cooled, or remote-cooled
  • Specialty units for correctional or marine application available
  • 24-hour self-diagnostics with notification reports
  • DuraTech exterior with excellent corrosion resistance
  • Programmable ice output and acoustical ice-sensing probe
  • Front-facing foodzone with AlphaSan antimicrobial coating


The Indigo and Indigo NXT Series are some of the most powerful and water- and energy-efficient modular commercial ice machines from Manitowoc. With an intelligent diagnostics system, user-friendly navigation display (with touch touchscreen or push-buttons), these commercial ice machines are smarter than your average commercial ice maker, allowing you to go through the entire process of ice making with less manual labor and without any fuss. There are also specialty Marine and Correctional modular commercial ice machines with features unique to the application.

QUADZILLA
For 2,800+ lbs ice production

  • Available for dice and half-dice ice
  • 75% quieter than self-contained or traditional remote ice makers
  • QuietQube technology for noiseless operation
  • CVD remote condensing unit with vapor refrigerant for harvesting ice
  • Large capacity refrigerant accumulators for superb condenser durability


If you want to be able to produce an enormous supply of ice without interrupting environment of your customers and workers, these QuietQube QuadZilla remote cubers are for you. The CVD remote condensing unit eases the process of ice harvest while large capacity refrigerant accumulators keep the condenser in prime condition under any operating condition.

The units fit four (4) copper evaporators into one unit, allowing you to harness the power of two machines in a single unit that won’t take up much space. The nickel plating on the evaporators improve the heat transfer for additional utility savings. The air-assist technology patented by Manitowoc works to boost energy efficiency to speed up harvest time.

  • Tubular 304 stainless steel welded frame construction protects the compressor and other important refrigeration parts from corrosion and wear-and-tear
  • Damper door switch mechanism unlocks bin’s full capacity
  • Scroll compressor is less vulnerable to mechanical failure
Tags

Popular Tags
