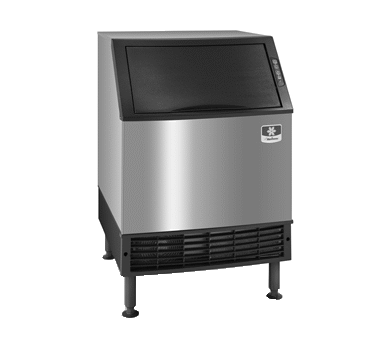

Manitowoc UDF-0240W NEO™ Undercounter Ice Maker

The UDF-0240W NEO™ Undercounter Ice Maker by Manitowoc is designed to take care of all undercounter ice cube needs. This unit combines efficiency, convenience, and ease of operation in a small footprint for a space-saving ice machine that you can count on.

Manitowoc designed this ice machine to produce more ice for much less energy and water! At 38 1/2" tall and 26" wide, this unit can supply your business with up to 197 lbs of dice ice cubes right from under your counter. No side clearance is required so you can easily place it next to another machine as well.

A control panel with indicator buttons and icons is located on the front bin, where you can fully operate the ice machine and view the real-time status of the operation without having to bend down.

The UDF-0240W NEO™ Undercounter Ice Maker features an angled door that you can easily slide up when you’re ready to scoop some ice. There are designated indicators for a Full Bin and when the machine is in Cleaning mode. The Service icon also lights up to let you know about potential issues happening inside the machine that you need to address. A Delay button is included so you can stop ice production for a pre-set number of hours to save on energy costs and avoid waste during slower times of the day.

This machine also cuts down cleaning time tremendously! Many parts of the foodzone are removable while the internal components are molded with AlphaSan for antimicrobial protection. You can simply slide the storage bin forward to access the refrigeration components during service and maintenance. An air filter captures lint, grease, and dirt that could clog up the unit. It can also be easily removed and thrown into the dishwasher for cleaning.

Improved Performance and Energy Efficiency

• Produces more ice with less energy and water consumption
• Reduced ownership costs over unit’s service life

Water-Cooled System and Compact Package

• No side vents to fit and function excellently under a countertop or next to another piece of equipment
• Water-cooled system is well-suited in warmer locations
• The refrigeration system is packed in the unit for immediate use upon delivery

Smart and User-Friendly Controls and On-the-Spot Feedback

• Control panel with illuminated icons
• Power button to turn the unit on and off
• Delay button halts ice production by 4, 12 or 24 hours to avoid unnecessary energy consumption and product waste
• Clean button indicates clean cycle is in progress
• Full Bin indicator light tells operator there’s plenty of ice available for use without opening the door
• Service icon illuminates in red to notify of potential problems

Simple Maintenance and Minimal Cleaning

• Dishwasher-safe air filter traps lint, grease, and dust
• Air filter can be removed with no tools needed
• Removable bin provides trouble-free access to refrigeration components to save time during service
• Water-trough, distribution tube, and damper door are all removable for proper cleaning
• AlphaSan® technology on select components guards against odors and discoloration from microbial contamination
• LuminIce® Growth Inhibitor is available separately to fight bacteria and yeast growth resulting in reduced cleanups

Dice Ice Cube Features and Benefits:

• Dimensions: 7/8" x 7/8" x 7/8"
• 48 cubes per pound of ice
• Inexpensive and quick to make
• Slow melt rate for reduced ice consumption
• Nearly 100% ice-to-water ratio for maximum cooling and lower production needs
• Perfect for liquor, soda, and other beverages in bars and restaurants
• Ice bagging and bulk cooling

Specifications:

• Production: Up to 197 lbs of dice ice every 24 hours
• Water Temperature Range: 45-90 ̊F
• Water Usage/100 lbs: 147 gal/556 liters
• Refrigerant: CFC-Free R-404A
• Overall Dimensions: 26"W x 28"D x 38 1/2"H
• Electrical Connection: 115/60/1 (208-230/60/1 and 230/50/1 available)
• Total Amps: 115/60/1: 5 amps,  208-230/60/1: 2.5 amps
• Maximum Fuse Size: 15 amps
• BTUH: 2,150 (average) 2,600 (peak)
• Compressor Nominal Rating: .42 HP
• Safety Certifications: NSF, cULus, CE
• Performance Certification: AHRI at 90°/70°

NEO™ Undercounter Ice Maker, cube-style, water-cooled, self contained, 26"W x 28"D x 38-1/2"H, production capacity up to 197 lb/24 hours at 70°/50° (174 lb AHRI certified at 90°/70°), 90 lbs ice storage capacity, electronic controls, dice size cubes, NSF, cULus,CE

• Cabinet volume 3.037 ft³ (0.086 m³)
• 90 lb. (40.0 Kg) ice storage capacity
• Up to 220 lbs (100 kg) of daily ice production
• Only 26" (66.04 cm) wide, 28.50" (72.4 cm) deep, and 38.50" (97.8 cm) high on 6" (15.24 cm) legs
• * Application capacity based on: 90% volume x 33lbs/ft3 average density of ice.

• Performance - NEO produces more ice than ever before while using less water and energy. The storage bin provides industry leading capacity.
• Intelligence - NEO provides feedback with full bin and service indicators. Delay function allows you to pause your machine for slow periods or days when you’re closed.
• Convenience - NEO offers a forward-sliding storage bin for easy access to refrigeration components without having to move the entire ice machine. Smooth, sealed food-zone with removable water trough, distribution tube, and damper door for faster cleaning. AlphaSan added to key internal components.
• Available LuminIce® Growth Inhibitor extends cleaning intervals by reducing yeast and bacteria growth keeping your ice machine cleaner, longer.

• Compressor: Nominal rating: .33 HP
• BTU Per Hour: 2,700 (average) 3,300 (peak)
• Cupra-Nickel Condenser: (Water-cooled models) Adds protection from corrosive water elements.

• Dice 7⁄8" x 7⁄8" x 7⁄8" (2.22 x 2.22 x 2.22 cm)
• Half Dice 3⁄8" x 1 1⁄8" x 7⁄8" (.95 x 2.86 x 2.22 cm)
• Regular 1 1⁄8" x 1 1⁄8" x 7⁄8" (2.86 x 2.86 x 2.22 cm)

• Removable Bin
• Air Filter - Simple, toolfree removal for quick access during routine cleaning and maintenance.
• Air Flow - Air in right, air out left, no side vents. Great for installation under countertops and next to other equipment.
