Half-Cube Ice Machine Selection Guide: Manitowoc, Scotsman, and Ice-o-Matic

Damon Shrauner March 20, 2023 1:04 AM

NOTE: Water-cooled commercial ice makers can consume upwards of 200 gallons of water a day. This type of commercial ice makers is generally recommended for facilities located in an environment that is too hot for an air-cooled machine. Hot environments can also benefit from a remote system where the compressor and condenser are placed in another room or outside although this will require the services of a refrigeration technician.

Recommendation: The production level of commercial ice maker depends a lot on water temperature. If water is very warm, there is going to be a difference in how much ice it can produce. You need to have cold water and normal ambient temperature to ensure maximum output. A heat exchanger like the System IV ChillTech is a great way to do just that. You can expect a 20% increase in the amount of ice you make for lower energy consumption.

Undercounter Ice Machines

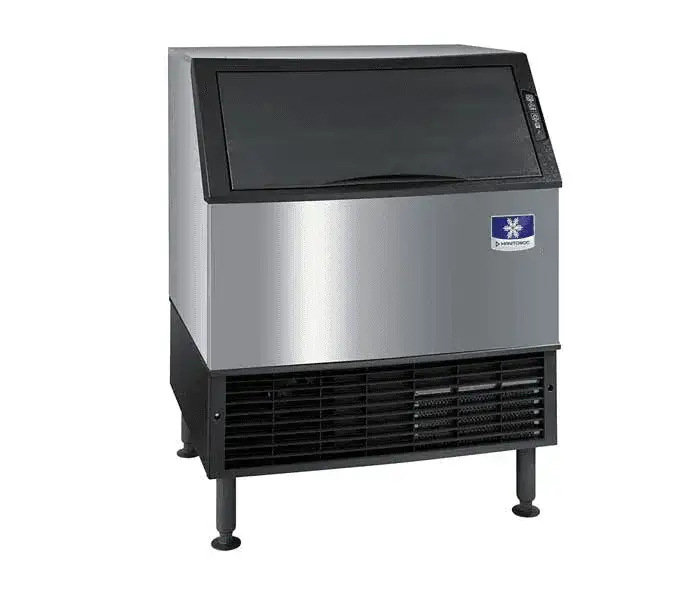

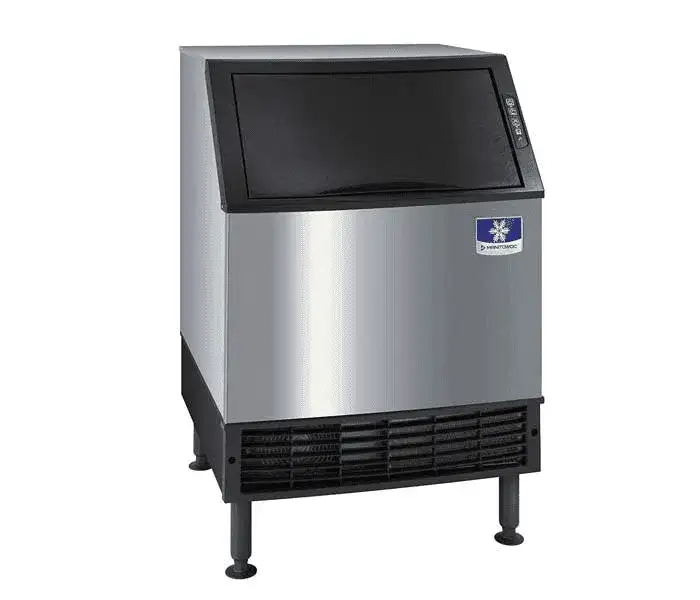

NEO® 140 Dimensions: 26"W x 28.5"D x 38.5"H Storage Bin Capacity: 90 lbs	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	UYF-0140A		Half-Dice	137 lbs. 24/HR

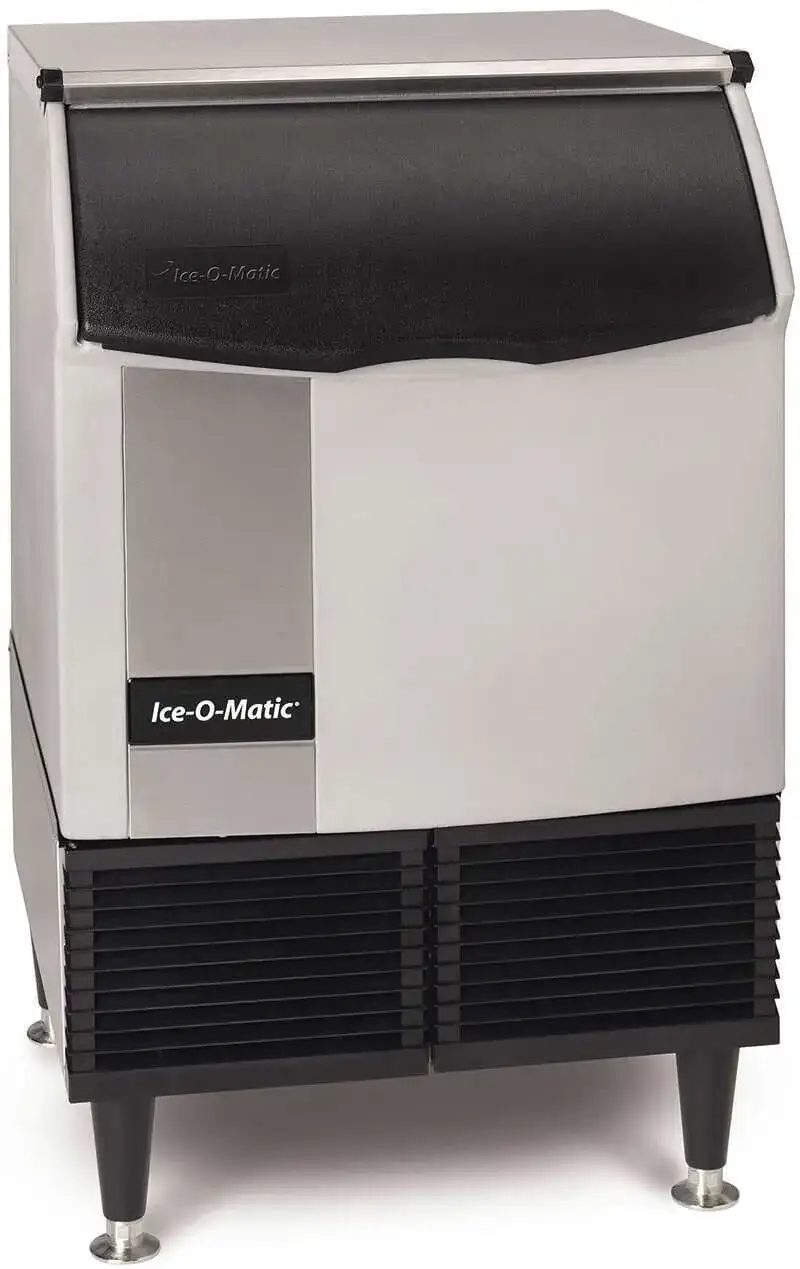

ICEU150 Dimensions: 24.54"W x 26.27"D x 39"H Storage Bin Capacity: 70 lbs	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	ICEU150HW		Half-cube	185 lbs. 24/HR
	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	ICEU150HA (Energy Star)		Half-cube	185 lbs. 24/HR
NEO® 140/190 Dimensions: 26"W x 28.5"D x 38.5"H Storage Bin Capacity: 90 lbs	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	UYF-0190A		Half-Dice	193 lbs. 24/HR
NEO® 240 Dimensions: 26"W x 28.5"D x 38.5"H Storage Bin Capacity: 90 lbs Voltage: 115v/60/1-ph	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	UYF-0240W		Half-Dice	207 lbs. 24/HR
	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	UYF-0240A		Half-Dice	219 lbs. 24/HR
NEO® 240 Dimensions: 26"W x 28.5"D x 38.5"H Storage Bin Capacity: 90 lbs Voltage: 230v/50/1-ph	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	UYP0240A		Half-Dice	219 lbs. 24/HR
ICEU220 Dimensions: 24.54"W x 26.27"D x 39"H Storage Bin Capacity: 70 lbs.	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	ICEU220HA (Energy Star)		Half-cube	238 lbs. 24/HR
ICEU226 Dimensions: 24.54"W x 26.27"D x 39"H Storage Bin Capacity: 70 lbs.	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	ICEU226HW		Half-cube	232 lbs. 24/HR
	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	ICEU226HA (Energy Star)		Half-cube	241 lbs. 24/HR
ICEU220 Dimensions: 24.54"W x 26.27"D x 39"H Storage Bin Capacity: 70 lbs.	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	ICEU220HW		Half-cube	251 lbs. 24/HR

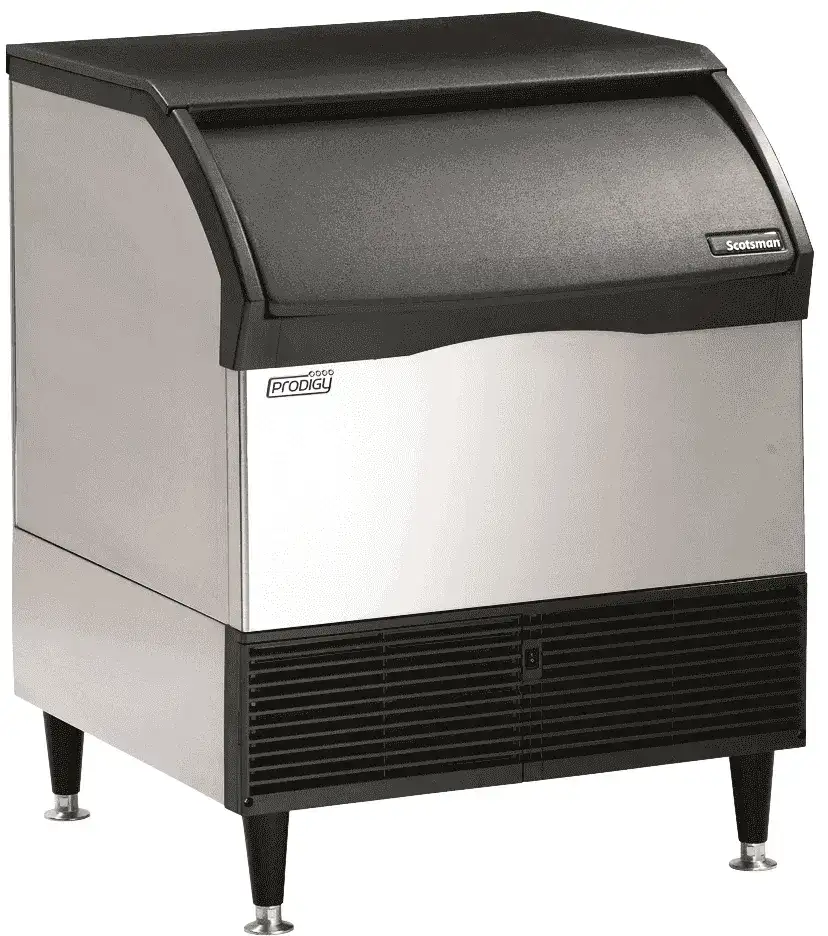

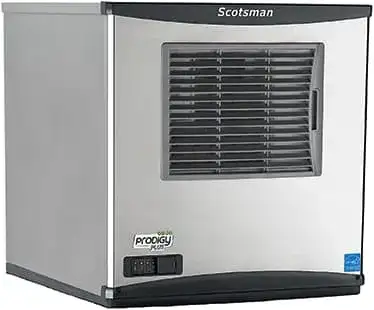

CU3030 Dimensions: 30"W x 30"D x 33"H Storage Bin Capacity: 110 lbs.	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	CU3030SA-6 230/50/1		Small Cube	287 lbs. 24/HR
NEO® 310 Dimensions: 30"W x 28.5"D x 38.5"H Storage Bin Capacity: 90 lbs Voltage: 115v/60/1-ph	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	UYP0310A		Half-Dice	290 lbs. 24/HR
NEO® 310 Dimensions: 30"W x 28.5"D x 38.5"H Storage Bin Capacity: 90 lbs	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	UYF-0310A		Half-Dice	290 lbs. 24/HR
	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	UYF-0310W		Half-Dice	293 lbs. 24/HR
ICEU300 Dimensions: 30.34"W x 29.97"D x 39"H Storage Bin Capacity: 97 lbs.	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	ICEU300HA		Half-cube	309 lbs. 24/HR
IYT0300 (Bin sold separately) Dimensions: 30"W x 24.5"D x 16.5"H Recommended Bin: D-400	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	IYT0300A		Half-Dice	310 lbs. 24/HR
	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	IYT0300W		Half-Dice	310 lbs. 24/HR
CU3030 Dimensions: 30"W x 30"D x 33"H Storage Bin Capacity: 110 lbs.	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	CU3030SA-1 (Energy Star)		Small Cube	313 lbs. 24/HR
	CU3030SA-32 208-230/60/1		Small Cube	313 lbs. 24/HR

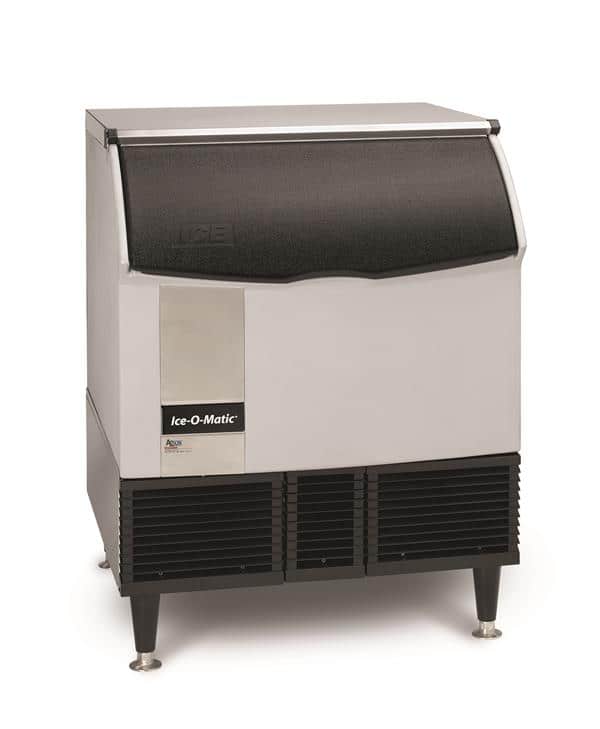

ICEU305 Dimensions: 30.34"W x 29.97"D x 39"H Storage Bin Capacity: 97 lbs.	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	ICEU300HW		Half-cube	356 lbs. 24/HR
Modular Ice Machines

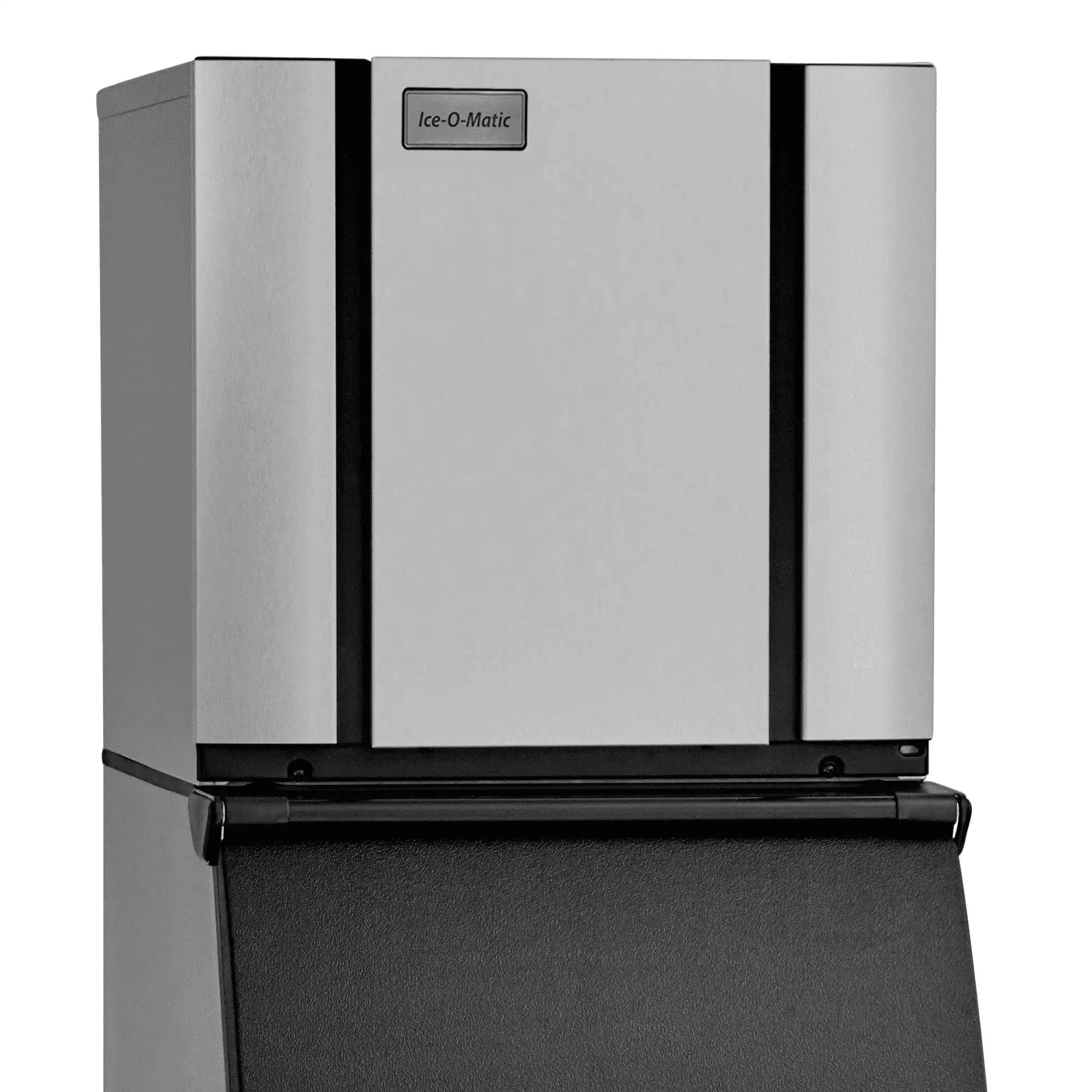

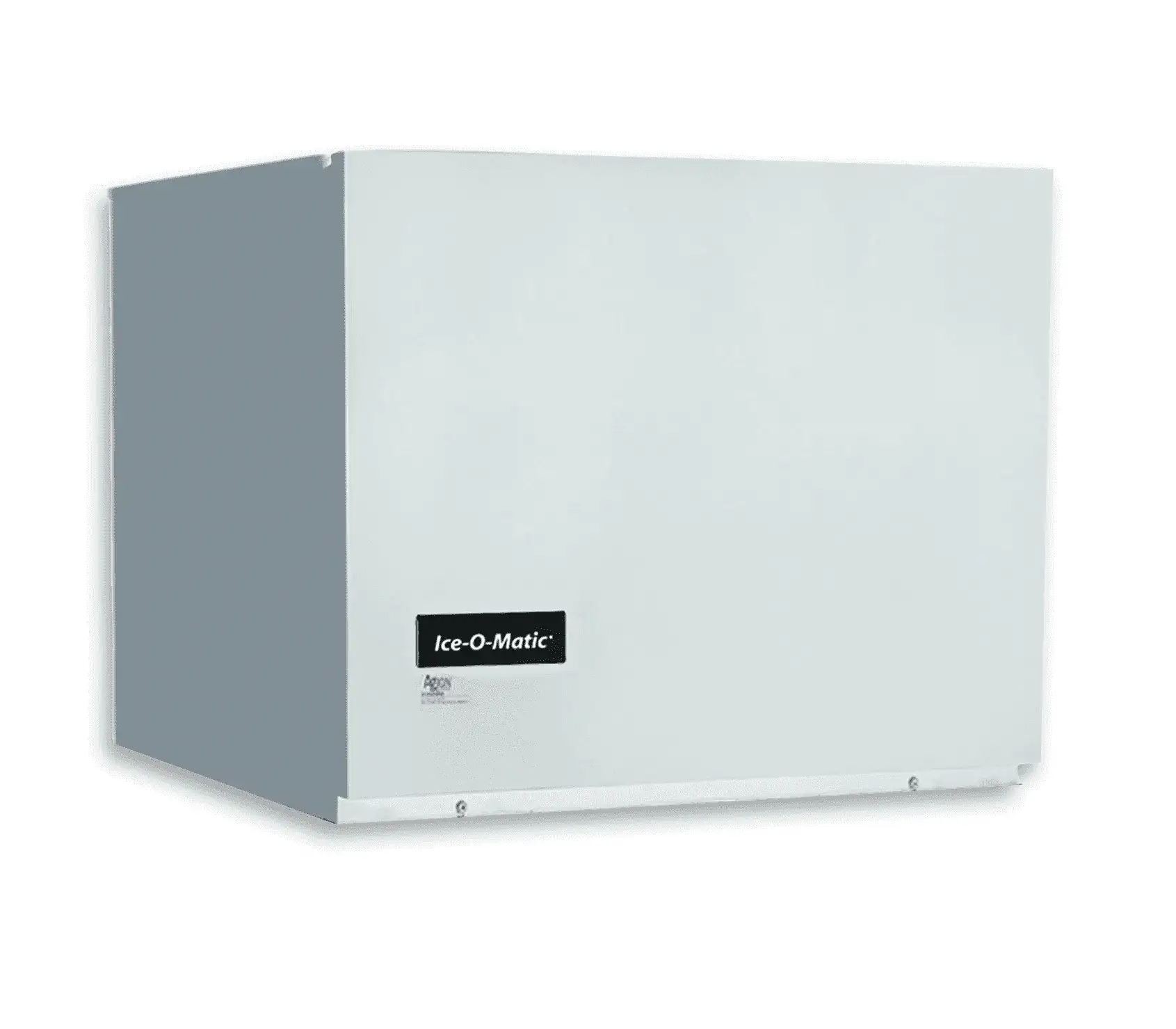

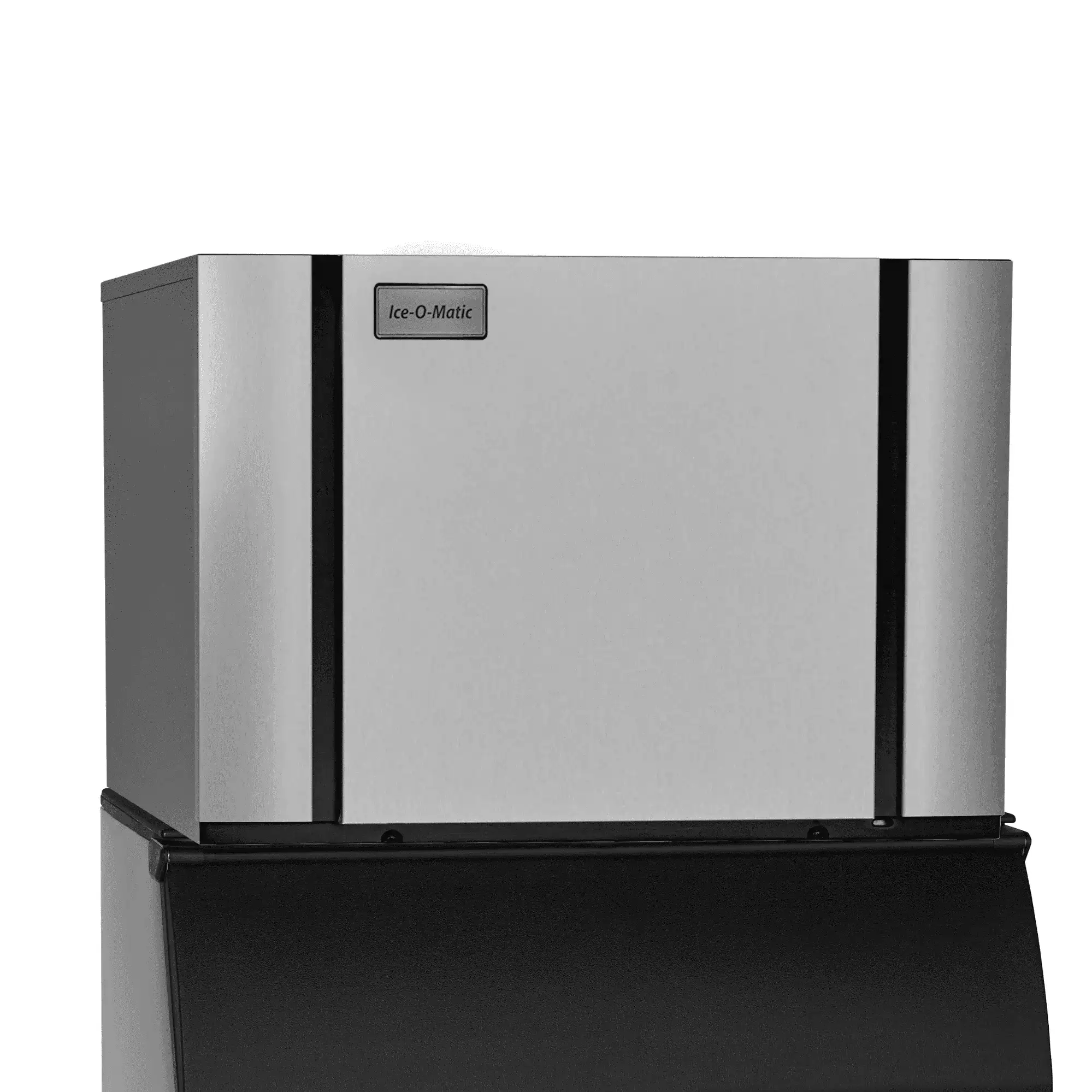

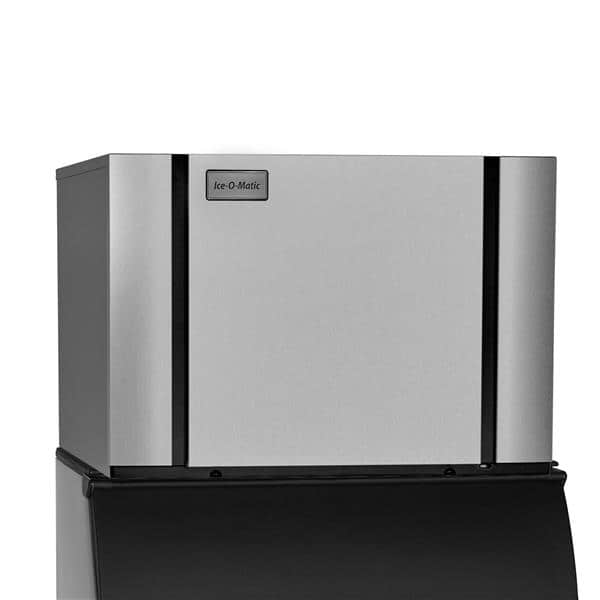

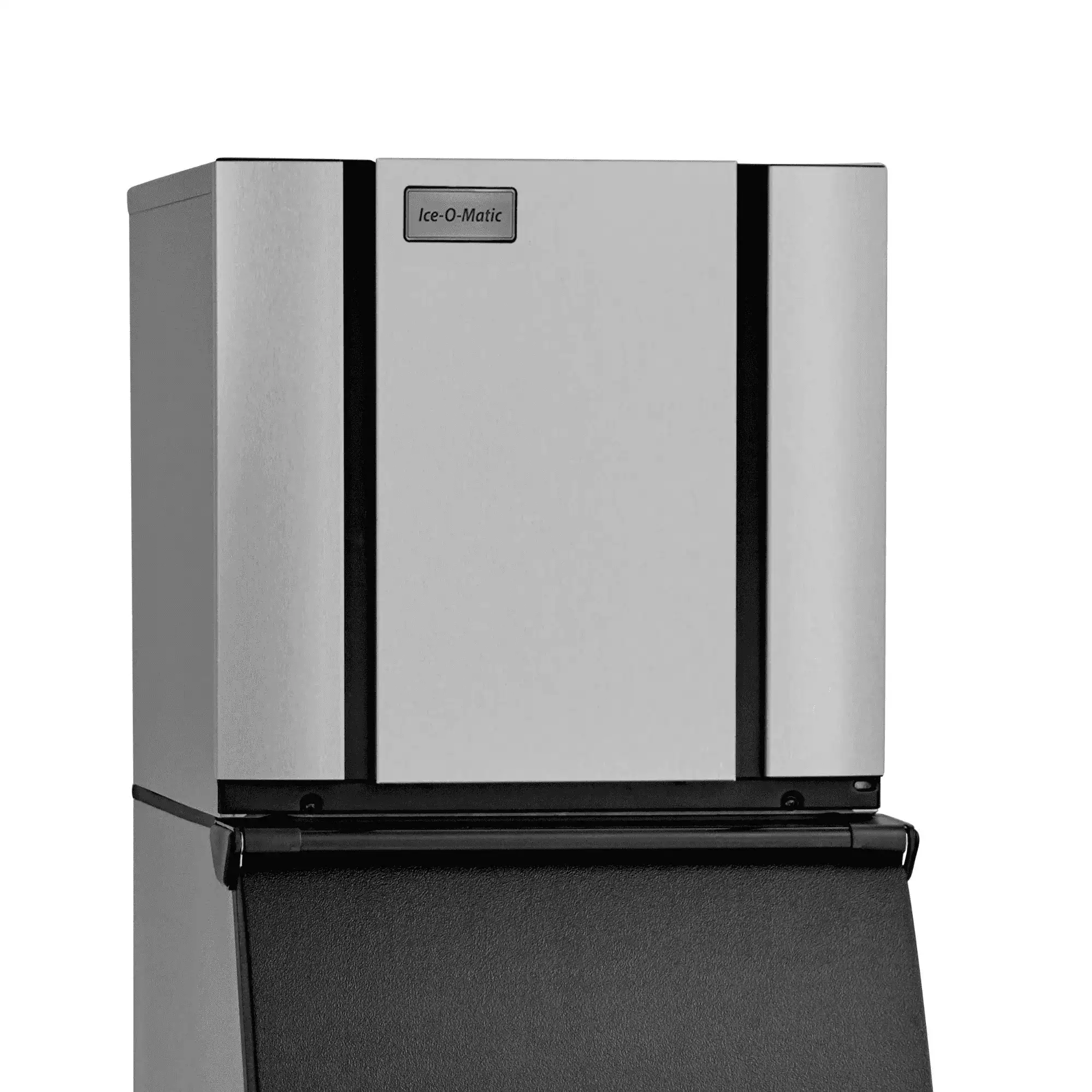

CIM0330 Dimensions: 22.25"W x 24.25"D x 21.25"H	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0330HA		Half-cube	313 lbs. 24/HR
CIM0320/0325/0326 Dimensions: 22.25"W x 24.25"D x 21.25"H	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0320HA		Half-cube	313 lbs. 24/HR
	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0320HW		Half-cube	316 lbs. 24/HR
CIM0330 Dimensions: 30.25"W x 24.25"D x 21.25"H	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0330HW		Half-cube	316 lbs. 24/HR
IYP0320 Dimensions: 22"W x 24.5"D x 21.5"H Recommended Bin/s: D-320/D-420 *Bin sold separately	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	IYP0320A		Half-Dice	320 lbs. 24/HR
CIM0320/0325/0326 Dimensions: 22.25"W x 24.25"D x 21.25"H	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0326HA		Half-cube	330 lbs. 24/HR

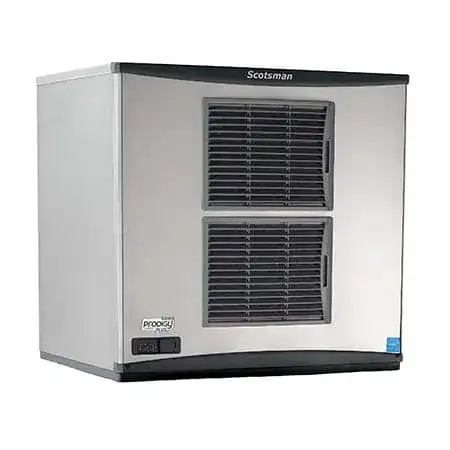

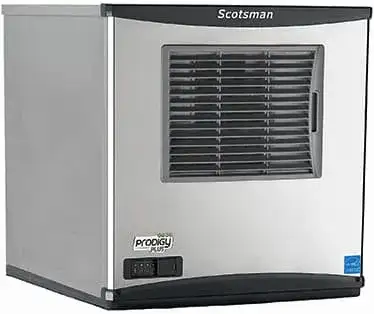

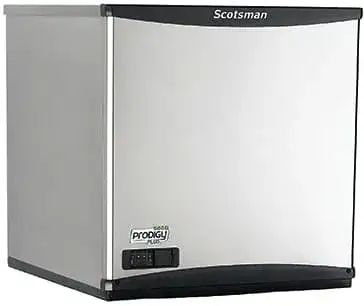

C0322AC Dimensions: 22"W x 24"D x 23"H Recommended Bin/s: B322S	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	C0322SA-1 (Energy Star) 115/60/1		Small Cube	356 lbs. 24/HR
C0322WC Dimensions: 22"W x 24"D x 23"H Recommended Bin/s: B322S	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	C0322SW-1 115/60/1		Small Cube	366 lbs. 24/HR

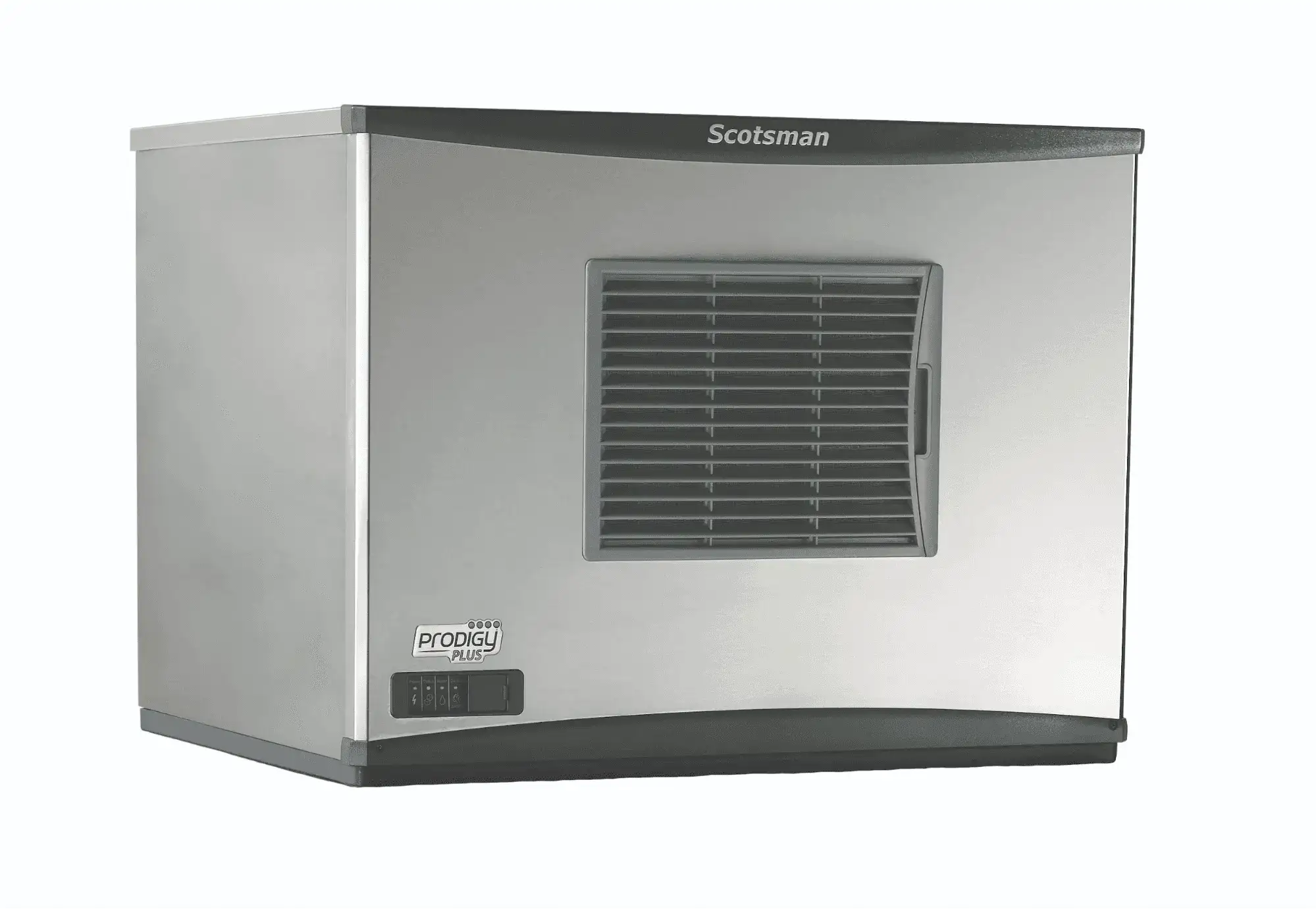

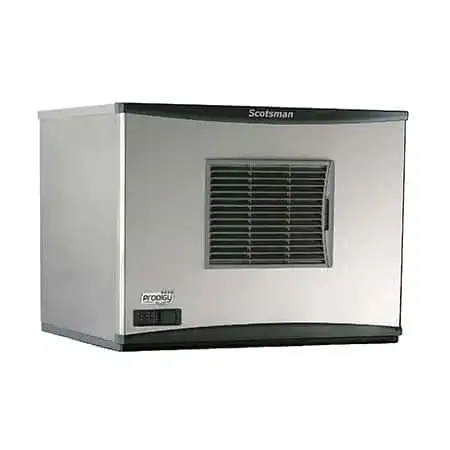

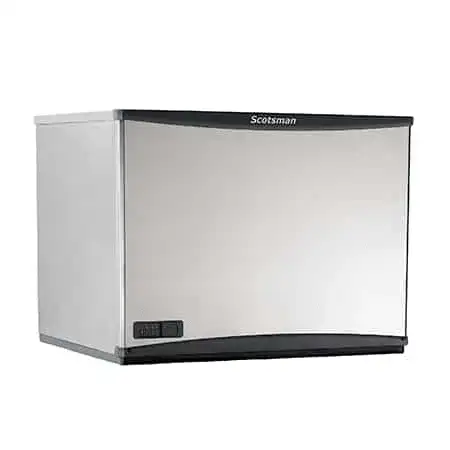

C0330AC Dimensions: 30"W x 24"D x 23"H Recommended Bin/s: B330P/B530S/B530P	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	C0330SA-1 (Energy Star) 115/60/1		Small Cube	400 lbs. 24/HR
C0330WC Dimensions: 30"W x 24"D x 23"H Recommended Bin/s: B330P/B530S/B530P	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	C0330SW-1 115/60/1		Small Cube	420 lbs. 24/HR

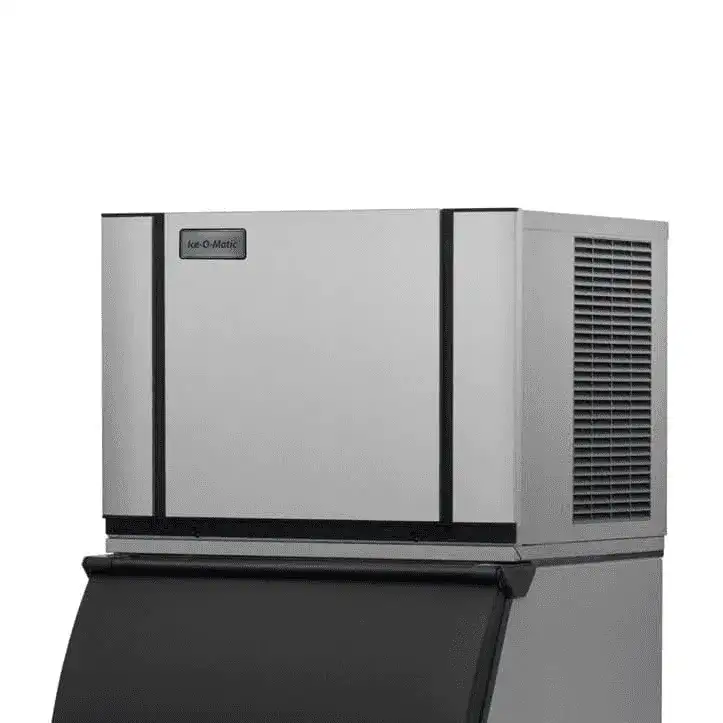

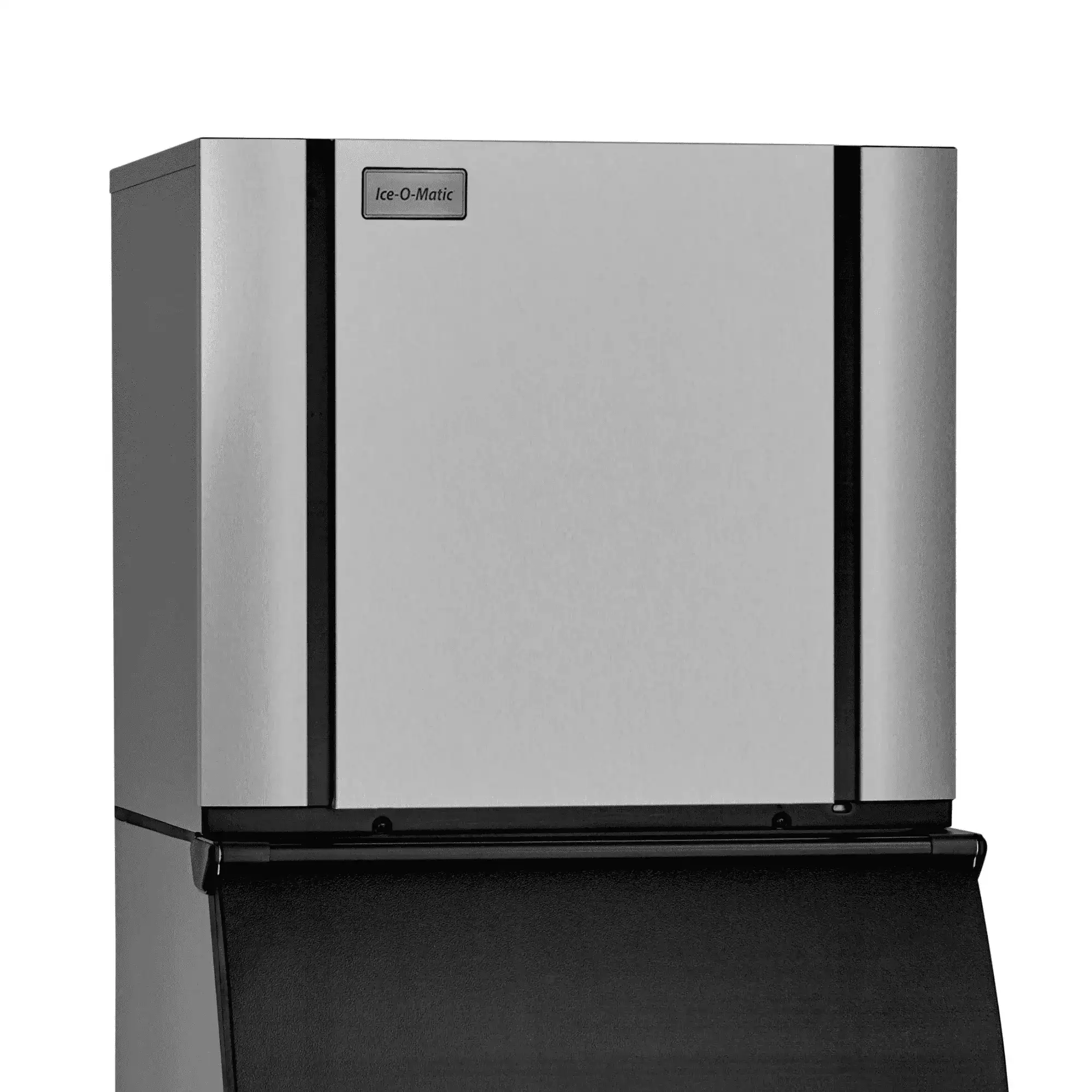

CIM0430/435 Dimensions:30.25"W x 24.25"D x 21.25"H	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0430HA (Energy Star)		Half-cube	435 lbs. 24/HR
	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0430HW		Half-cube	460 lbs. 24/HR
IYP0500 Dimensions: 30"W x 24"D x 21.5"H Recommended Bin/s: D-400/D-570 *Bin sold separately	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	IYP0500A		Half-Dice	440 lbs. 24/HR

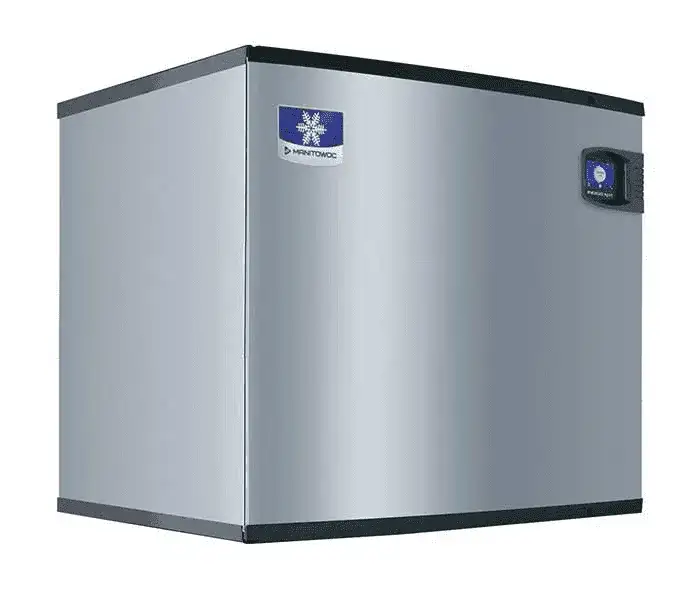

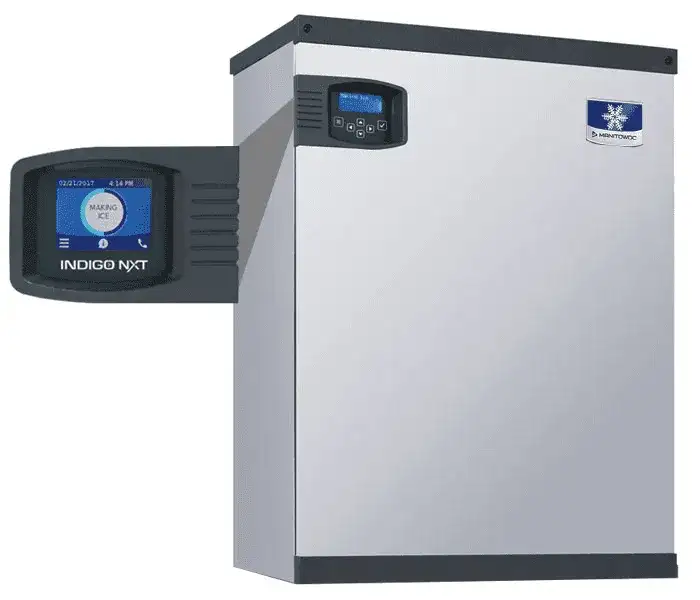

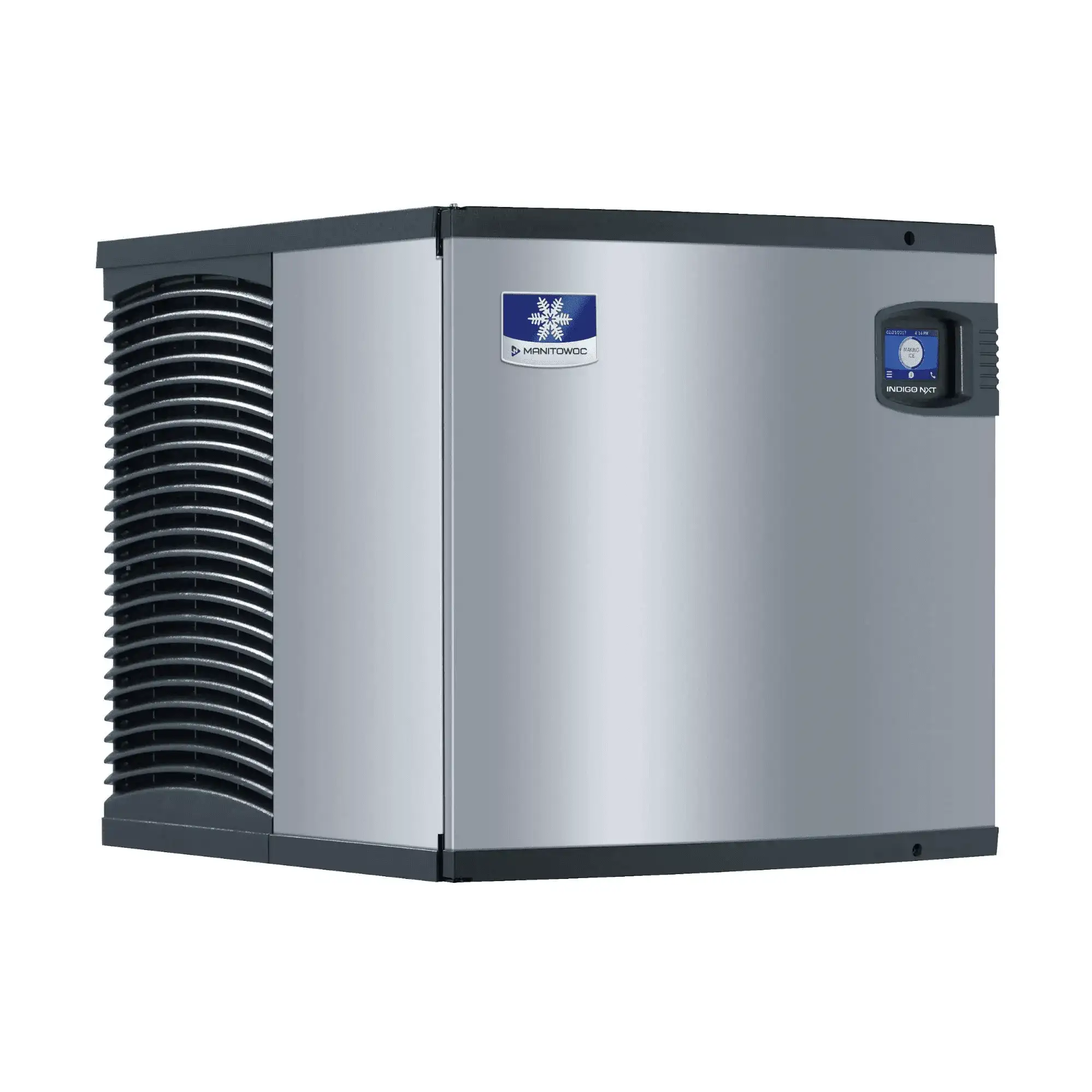

iT0420 INDIGO NXT Dimensions:22"W x 24.5"D x 21.5"H Recommended Bin: D-320 Recommended Ice Dispenser: SPA-160	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	IYT0420A (Energy Star)		Half-Dice	460 lbs. 24/HR
CIM0430/0436/0435 Dimensions: 30.25"W x 24.25"D x 21.25"H	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0436HA (Energy Star)		Half-cube	465 lbs. 24/HR
iT0450 INDIGO NXT Dimensions: 30"W x 24"D x 21.5"H Recommended Bin:D-400	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	IYT0450W		Half-Dice	470 lbs. 24/HR
C0522AC Dimensions: 22"W x 24"D x 23"H Recommended Bin/s: B322S	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	C0522SA-6 230/50/1		Small Cube	471 lbs. 24/HR
	C0522SA-1 115/60/1		Small Cube	475 lbs. 24/HR
	C0522SA-32 208-230/60/1		Small Cube	475 lbs. 24/HR

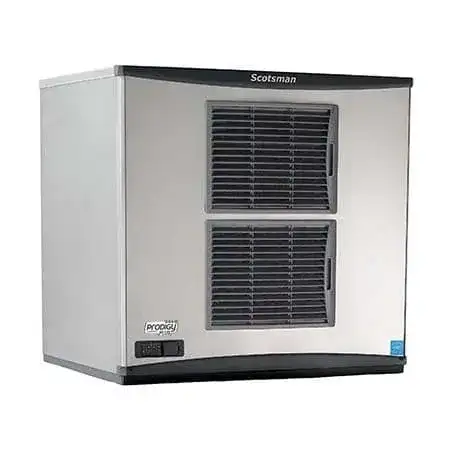

C0530AC Dimensions: 30"W x 24"D x 23"H Recommended Bin/s:B330P/B530S/B530P	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	C0530SA-6 230/50/1		Small Cube	477 lbs. 24/HR
C0522WC Dimensions: 22"W x 24"D x 23"H Recommended Bin/s: B322S	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	C0522SW-1 115/60/1		Small Cube	480 lbs. 24/HR
	C0522SW-32 208-230/60/1		Small Cube	480 lbs. 24/HR
iT0420 INDIGO NXT Dimensions: 22"W x 24.5"D x 21.5"H Recommended Bin: D-320 Recommended Ice Dispenser: SPA-160	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	IYT0420W		Half-Dice	490 lbs. 24/HR
iT0450 INDIGO NXT Dimensions: 30"W x 24"D x 21.5"H Recommended Bin: D-400	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	IYT0450A (Energy Star)		Half-Dice	490 lbs. 24/HR
CIM0436 Dimensions: 30.25"W x 24.25"D x 21.25"H	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0436HW		Half-cube	500 lbs. 24/HR
C0530WCRC Dimensions: 30"W x 24"D x 23"H Recommended Bin/s:B330P/B530S/B530P	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	C0530SW-1 115/60/1		Small Cube	500 lbs. 24/HR
	REMOTE-COOLED (Requires ERC111-1 Condenser)
	Model	Brand	Ice Type	Max Production
	C0530SR-1 115/60/1		Small Cube	500 lbs. 24/HR
IYF0500 Dimensions: 30"W x 24"D x 21.5"H Recommended Bin/s: D-400/D-570 *Bin sold separately	REMOTE-COOLED
	Model	Brand	Ice Type	Max Production
	IYF0500N		Half-Dice	525 lbs. 24/HR
C0530AC Dimensions: 30"W x 24"D x 23"H Recommended Bin/s:B330P/B530S/B530P	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	C0530SA-1 (Energy Star) 115/60/1		Small Cube	525 lbs. 24/HR
	C0530SA-32 (Energy Star) 208-230/60/1		Small Cube	525 lbs. 24/HR
CIM0530/0535 Dimensions: 30.25"W x 24.25"D x 21.25"H	REMOTE-COOLED (Requires RCA-1061 Condenser)
	Model	Brand	Ice Type	Max Production
	CIM0530HR		Half-cube	525 lbs. 24/HR
	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0535HA		Half-cube	529 lbs. 24/HR
CIM0535 Dimensions: 30.25"W x 24.25"D x 21.25"H	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0535HW		Half-cube	531 lbs. 24/HR
iT0500 INDIGO NXT Dimensions: 30"W x 24"D x 21.5"H Recommended Bin: D-570	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	IYT0500W		Half-Dice	535 lbs. 24/HR
	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	IYT0500A (Energy Star)		Half-Dice	550 lbs. 24/HR
CIM0520/0525/0526 Dimensions: 22.25"W x 24.25"D x 21.25"H	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0526HA		Half-cube	555 lbs. 24/HR
	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0525HW		Half-cube	555 lbs. 24/HR
iT0620 INDIGO NXT Dimensions: 22"W x 24.5"D x 21.5"H Recommended Bin: D-420 Recommended Ice Dispenser: SFA-191	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	IYT0620W		Half-Dice	560 lbs. 24/HR
CIM0520/0525/0526 Dimensions: 22.25"W x 24.25"D x 21.25"H	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0520HA		Half-cube	561 lbs. 24/HR
CIM0530/0535 Dimensions: 30.25"W x 24.25"D x 21.25"H	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0530HA		Half-cube	561 lbs. 24/HR
iT0620 INDIGO NXT Dimensions: 22"W x 24.5"D x 21.5"H Recommended Bin: D-420 Recommended Ice Dispenser: SFA-191	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	IYT0620A (Energy Star)		Half-Dice	575 lbs. 24/HR
CIM0520 Dimensions: 22.25"W x 21.25"D x 24.25"H	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0520HW		Half-cube	586 lbs. 24/HR
CIM0530 Dimensions: 30.25"W x 24.25"D x 21.25"H	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0530HW		Half-cube	586 lbs. 24/HR
CIM0636/0635 Dimensions: 30.25"W x 24.25"D x 21.25"H	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0636HA		Half-cube	600 lbs. 24/HR
C0630WCRC Dimensions: 30"W x 24"D x 23"H Recommended Bin/s:B530P/B530S/B842S	REMOTE-COOLED (Requires ERC311-32 Condenser)
	Model	Brand	Ice Type	Max Production
	C0630SR-32 (Energy Star) 208-230/60/1		Small Cube	614 lbs. 24/HR
CIM0636 Dimensions: 30.25"W x 24.25"D x 21.25"H	REMOTE-COOLED (Requires RCA-1061 Condenser)
	Model	Brand	Ice Type	Max Production
	CIM0636HR (Energy Star)		Half-cube	615 lbs. 24/HR
	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0636HW		Half-cube	620 lbs. 24/HR
C0630WCRC Dimensions: 30"W x 24"D x 23"H Recommended Bin/s:B530P/B530S/B842S	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	C0630SW-32 208-230/60/1		Small Cube	633 lbs. 24/HR
QUIETQUBE IYF0600C Recommended Bin: D-400/D-570	REMOTE-COOLED
	Model	Brand	Ice Type	Max Production

C0630AC Dimensions: 30"W x 24"D x 23"H Recommended Bin/s: B530P/B530S/B842S	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	C0630SA-32 208-230/60/1		Small Cube	640 lbs. 24/HR
IYF0600 Dimensions: 30"W x 24"D x 21.5"H Recommended Bin/s: D-400/D-570	REMOTE-COOLED
	Model	Brand	Ice Type	Max Production
	IYF0600N (Energy Star)		Half-Dice	642 lbs. 24/HR
C0630AC Dimensions: 30"W x 24"D x 23"H Recommended Bin/s:B530P/B530S/B842S	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	C0630SA-6 230/50/1		Small Cube	660 lbs. 24/HR

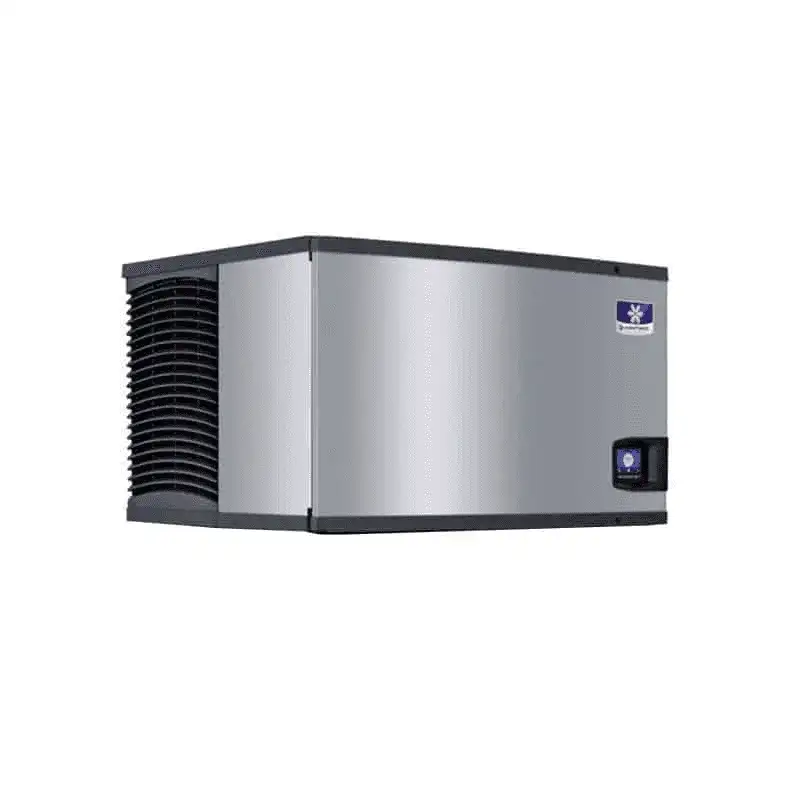

IYT0750 Dimensions: 30"W x 24"D x 21.5"H Recommended Bin/s: D-400/D-570 *Bin sold separately	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	IYT0750A		Half-Dice	715 lbs. 24/HR

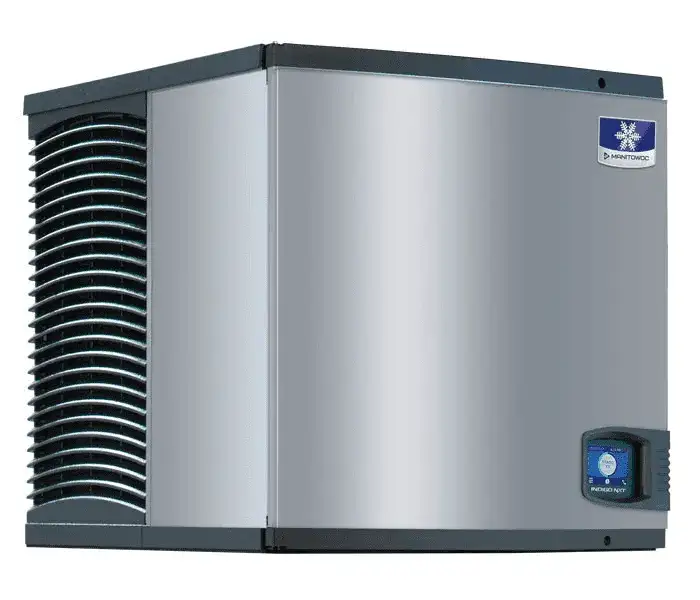

iT0900 INDIGO NXT Dimensions: 30"W x 24.5"D x 26.5"H Recommended Bin: D-570	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	IYT0900W		Half-Dice	722 lbs. 24/HR

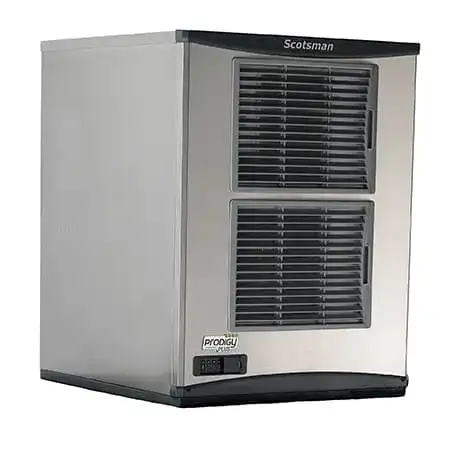

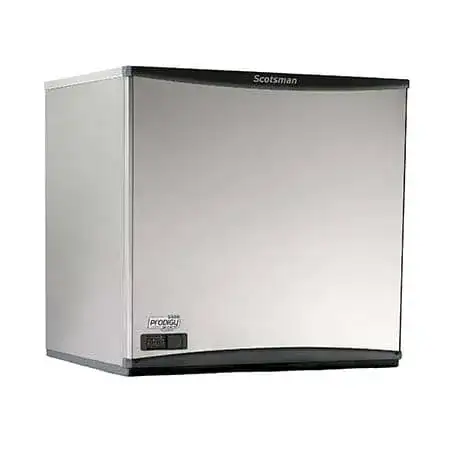

C0722 Dimensions: 22"W x 24"D x 29"H Recommended Bin/s: B842S/B948S	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	C0722SA-6 230/50/1		Small Cube	725 lbs. 24/HR
	C0722SA-32 208-230/60/1		Small Cube	758 lbs. 24/HR
IYT0750 Dimensions: 30"W x 24"D x 21.5"H Recommended Bin/s: D-400/D-570 *Bin sold separately	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	IYT0750W (Energy Star)		Half-Dice	740 lbs. 24/HR
C0830AC Dimensions: 30"W x 24"D x 29"H Recommended Bin/s:B530P/B530S/B842S	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	C0830SA-6 230/50/1		Small Cube	792 lbs. 24/HR

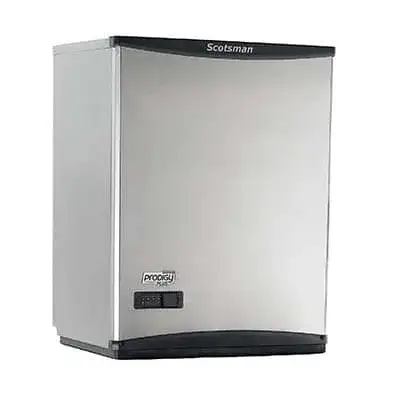

EH222 Dimensions: 22"W x 16.5"D x 29"H Recommended Bin/s:BH1100BB/BH1100SS Recommended Dispenser/s:ID200/ID250/ID150/ABS	REMOTE-COOLED (Requires ECC0800-3/ECC0800-6for 850 lbs or ECC1410-32/ECC1410-3for 1,030 lbs)
	Model	Brand	Ice Type	Max Production
	EH222SL-6 230/50/1		Small Cube	800 lbs. 24/HR
	EH222SL-1 (Energy Star) 115/60/1		Small Cube	850-1,030 lbs. 24/HR

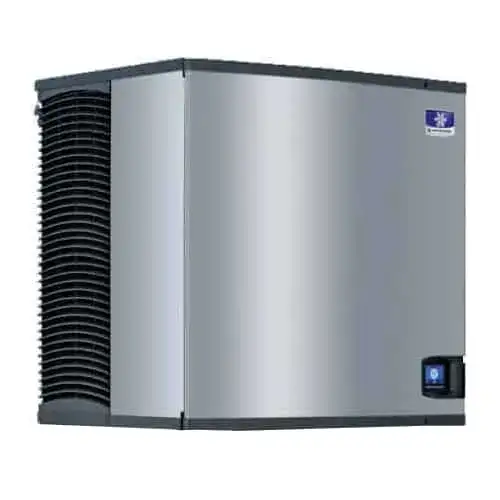

QUIETQUBE IYF0900C Dimensions: 30"W x 24.5"D x 26.5"H Recommended Bin: D-570	REMOTE-COOLED
	Model	Brand	Ice Type	Max Production
	IYF0900C		Half-Dice	816 lbs. 24/HR
iF0900 INDIGO NXT Dimensions: 30"W x 24.5"D x 26.5"H Recommended Bin: D-570	REMOTE-COOLED (use with JCF-0900 Condensing Unit)
	Model	Brand	Ice Type	Max Production
	IYF-0900N		Half-Dice	855 lbs. 24/HR
C0830WCRC Dimensions: 30"W x 24"D x 29"H Recommended Bin/s:B530P/B530S/B842S	REMOTE-COOLED (Use with ERC311-32 Condenser)
	Model	Brand	Ice Type	Max Production
	C0830SR-32 (Energy Star) 208-230/60/1		Small Cube	870 lbs. 24/HR
iT0900 INDIGO NXT Dimensions: 30"W x 24.5"D x 26.5"H Recommended Bin: D-570	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	IYT0900A (Energy Star)		Half-Dice	865 lbs. 24/HR
CIM0826/0825 Dimensions: 22.25"W x 24.25"D x 26.9"H	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0826HA		Half-cube	896 lbs. 24/HR
CIM0836/0835 Dimensions: 30.25"W x 24.25"D x 26.9"H	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0836HA		Half-cube	896 lbs. 24/HR
	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0836HW		Half-cube	896 lbs. 24/HR
	CIM0835HW		Half-cube	901 lbs. 24/HR
iF0900 INDIGO NXT Dimensions: 30"W x 24.5"D x 26.5"H Recommended Bin: D-570	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	IYF-0900A		Half-Dice	901 lbs. 24/HR
C0830AC Dimensions: 30"W x 24"D x 29"H Recommended Bin/s:B530P/B530S/B842S	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	C0830SA-3 208-230/60/3		Small Cube	905 lbs. 24/HR
	C0830SA-32 (Energy Star) 208-230/60/1		Small Cube	905 lbs. 24/HR
CIM0836/0835 Dimensions: 30.25"W x 24.25"D x 26.9"H	REMOTE-COOLED (Use with RCA-2061 Condenser)
	Model	Brand	Ice Type	Max Production
	CIM0836HR		Half-cube	906 lbs. 24/HR
C1030AC Dimensions: 30"W x 24"D x 29"H Recommended Bin/s: B842S/B948S/BH1100BB/BH1100SS	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	C1030SA-6 230/50/1		Small Cube	915 lbs. 24/HR
CIM1136/1135/1137 Dimensions: 30.25"W x 24.25"D x 26.9"H	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	CIM1137HA		Half-cube	917 lbs. 24/HR
CIM0826 Dimensions: 22.25"W x 24.25"D x 26.9"H	REMOTE-COOLED
	Model	Brand	Ice Type	Max Production
	CIM0826HR		Half-cube	922 lbs. 24/HR
	WATER-COOLED
	Model	Brand	Ice Type	Ma Production
	CIM0826HW		Half-cube	922 lbs. 24/HR
C0830WCRC Dimensions: 30"W x 24"D x 29"H Recommended Bin/s:B530P/B530S/B842S	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	C0830SW-32 208-230/60/1		Small Cube	924 lbs. 24/HR
CIM1136/1135/1137 Dimensions: 30.25"W x 24.25"D x 26.9"H	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	CIM1136HA		Half-cube	932 lbs. 24/HR
CIM1126 Dimensions: 22.25"W x 24.25"D x 26.9"H	REMOTE-COOLED
	Model	Brand	Ice Type	Max Production
	CIM1126HR		Half-cube	968 lbs. 24/HR
CIM1136/1135/1137 Dimensions: 30.25"W x 24.25"D x 26.9"H	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	CIM1136HW		Half-cube	968 lbs. 24/HR
	REMOTE-COOLED (Use with RCA-2061 Condenser)
	Model	Brand	Ice Type	Max Production
	CIM1136HR		Half-cube	968 lbs. 24/HR
	CIM1137HR		Half-cube	973 lbs. 24/HR
	WATER-COOLED
	CIM1137HW		Half-cube	994 lbs. 24/HR
C1030WCRC Dimensions: 30"W x 24"D x 29"H Recommended Bin/s: B842S/B948S/BH1100BB/BH1100SS: B530P/B530S/B842S	REMOTE-COOLED (Requires ERC311-32 Condenser)
	Model	Brand	Ice Type	Max Production
	C1030SR-32 (Energy Star) 208-230/60/1		Small Cube	996 lbs. 24/HR
	C1030SR-3 (Energy Star) 208-230/60/3		Small Cube	996 lbs. 24/HR
High-Volume Modular Half Cube Ice Machines
C1030WCRC Dimensions: 30"W x 24"D x 29"H Recommended Bin/s: B842S/B948S/BH1100BB/BH1100SS: B530P/B530S/B842S	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	C1030SW-32 208-230/60/1		Small Cube	1,029 lbs. 24/HR
CIM1126/1125 Dimensions: 22.25"W x 24.25"D x 26.9"H	REMOTE-COOLED (Use with RCA-2061 Condenser)
	Model	Brand	Ice Type	Max Production
	CIM1125HR		Half-cube	1,035 lbs. 24/HR
	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	CIM1126HA		Half-cube	1,035 lbs. 24/HR
	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	CIM1126HW		Half-cube	1,035 lbs. 24/HR
C1030AC Dimensions: 30"W x 24"D x 29"H Recommended Bin/s: B842S/B948S/BH1100BB/BH1100SS	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	C1030SA-32 (Energy Star) 208-230/60/1		Small Cube	1,077 lbs. 24/HR
iT1200 INDIGO NXT Dimensions: 30"W x 24.5"D x 29.5"H Recommended Bin: D-570	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	IYT1200W		Half-Dice	1,138 lbs. 24/HR
	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	IYT1200A		Half-Dice	1,213 lbs. 24/HR
	REMOTE-COOLED (use with JCT-1200A Condensing Unit)
	Model	Brand	Ice Type	Max Production
	IYT1200N		Half-Dice	1,215 lbs. 24/HR
QUIETQUBE® iT1200C Dimensions: 30"W x 24.5"D x 29.5"H Recommended Bin:D-970	REMOTE-COOLED (Use with CVDT1200A Condensing Unit)
	Model	Brand	Ice Type	Max Production
	IYT1200C		Half-Dice	1,215 lbs. 24/HR
QUIETQUBE® iF1400C Dimensions: 30"W x 24.5"D x 25"H Recommended Bin: D-970(single)/F-1650(double)	REMOTE-COOLED (Use with CVDF1400 Condensing Unit)
	Model	Brand	Ice Type	Max Production
	IYF1400C		Half-Dice	1,350 lbs. 24/HR
C1448WCRC Dimensions: 48"W x 24"D x 29"H Recommended Bin/s: B948S/BH1100BB/BH1100SS BH1300BB/BH1300SS	REMOTE-COOLED (Use with ERC311-32 Condenser)
	Model	Brand	Ice Type	Max Production
	C1448SR-32 (Energy Star) 208-230/60/1		Small Cube	1,357 lbs. 24/HR
	C1448SR-3 208-230/60/3		Small Cube	1,357 lbs. 24/HR
EH330 Dimensions: 30"W x 24"D x 23"H Recommended Bin/s: ED200/ED250 Recommended Dispenser/s: IDC255	REMOTE-COOLED (Use with ECC1200-32 Condenser)
	Model	Brand	Ice Type	Max Production
	EH330SL-1		Small Cube	1,411 lbs. 24/HR
EH430 Dimensions: 30"W x 24"D x 23"H Recommended Bin/s: B948S/BH1100BB/BH1100SS BH1300BB/BH1300SS BH1600BB/BH1600SS	REMOTE-COOLED (Use with ECC1410-32/ECC1410-3 for 1,425 lbs or ECC1800-3 for 1,775 lbs)
	Model	Brand	Ice Type	Max Production
	EH430SL-1 (Energy Star)		Small Cube	1,425-1,775 lbs. 24/HR
SLIMLINE ICE1506 Dimensions: 30.4"W x 26.3"D x 22.03"H	REMOTE-COOLED (Use with RCA-2061 Condenser)
	Model	Brand	Ice Type	Max Production
	ICE1506HT		Half-cube	1,430 lbs. 24/HR
C1448WCRC Dimensions: 48"W x 24"D x 29"H Recommended Bin/s: B948S/BH1100BB/BH1100SS BH1300BB/BH1300SS	REMOTE-COOLED (USe with ERC311-32 Condenser)
	Model	Brand	Ice Type	Max Production
	C1448SW-32 208-230/60/1		Small Cube	1,444 lbs. 24/HR
	C1448SW-3 208-230/60/3		Small Cube	1,444 lbs. 24/HR
SLIMLINE ICE1506 Dimensions: 30.4"W x 26.3"D x 22.03"H	REMOTE-COOLED (USe with RCA-2061 Condenser)
	Model	Brand	Ice Type	Max Production
	ICE1506HR		Half-cube	1,450 lbs. 24/HR
High-Volume Ice Machines
C1448AC Dimensions: 48"W x 24"D x 29"H Recommended Bin/s: B948S/BH1100BB/BH1100SS BH1300BB/BH1300SS	REMOTE-COOLED (Use with ERC311-32 Condenser)
	Model	Brand	Ice Type	Max Production
	C1448SA-6 230/50/1		Small Cube	1,553 lbs. 24/HR
	C1448SA-32 (Energy Star) 208-230/60/1		Small Cube	1,553 lbs. 24/HR
	C1448SA-3 (Energy Star) 208-230/60/3		Small Cube	1,553 lbs. 24/HR
CIM1446/1447 Dimensions: 48.25" W x 24.25"D x 26.8"H 1446 series require 208-230/60/1 electrical connection with approx. 22,000 BTU/HR 1447 series require 208-230/60/3 electrical connection with approx. 21,000 BTU/HR	REMOTE-COOLED
	Model	Brand	Ice Type	Max Production
	CIM1446HR		Half-cube	1,560 lbs. 24/HR
	CIM1447HR		Half-cube	1,560 lbs. 24/HR
	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	CIM1446HA		Half-cube	1,560 lbs. 24/HR
	CIM1447HA		Half-cube	1,560 lbs. 24/HR
	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	CIM1446HW		Half-cube	1,560 lbs. 24/HR
CIM1545 Dimensions: 48.25"W x 24.25"D x 26"H	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	CIM1545HA		Half-cube	1,560 lbs. 24/HR
iT1500 INDIGO NXT Dimensions: 48"W x 24"D x 29.5"H Recommended Bin: D-970	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	IYT1500W		Half-Dice	1,590 lbs. 24/HR
CIM1545 Dimensions: 48.25"W x 24.25"D x 26"H	REMOTE-COOLED
	Model	Brand	Ice Type	Max Production
	CIM1545HR		Half-cube	1,598 lbs. 24/HR
	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	CIM1545HW		Half-cube	1,605 lbs. 24/HR
QUIETQUBE® iF1800C Dimensions: 30"W x 24.5"D x 29.5"H Recommended Bin: D-970(single)/F-1650(double)	REMOTE-COOLED (Use with CVDF2100 Condensing Unit)
	Model	Brand	Ice Type	Max Production
	IYF1800C		Half-Dice	1,660 lbs. 24/HR
iT1500 INDIGO NXT Dimensions: 48"W x 24"D x 29.5"H Recommended Bin: D-970	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	IYT1500A		Half-Dice	1,660 lbs. 24/HR
	REMOTE-COOLED (use with JCT-1500 Condensing Unit)
	Model	Brand	Ice Type	Max Production
	IYT1500N		Half-Dice	1,700 lbs. 24/HR
CIM1845 Dimensions: 48.25" W x 24.25"D x 26"H	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	CIM1845HA		Half-cube	1,710 lbs. 24/HR
	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	CIM1845HW		Half-cube	1,736 lbs. 24/HR
iT1500 INDIGO NXT Dimensions: 48"W x 24"D x 29.5"H Recommended Bin: D-970	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	IYT1900W		Half-Dice	1,740 lbs. 24/HR
2046/2047 Dimensions: 48.25"W x 24.25"D x 26"H	REMOTE-COOLED (Use with RCA-3061 Condenser)
	Model	Brand	Ice Type	Max Production
	CIM2046HR		Half-cube	1,751 lbs. 24/HR
iT1900 INDIGO NXT Dimensions: 48"W x 24"D x 29.5"H Recommended Bin:D-970	REMOTE-COOLED (Use with JCT-1500 Remote Condenser)
	Model	Brand	Ice Type	Max Production
	IYT1900N		Half-Dice	1,800 lbs. 24/HR
C1848WCRC Dimensions: 48"W x 24"D x 29"H Recommended Bin/s: BH1300BB/BH1300SS BH1600BB/BH1600SS	REMOTE-COOLED (Use with ERC611-32 Condenser)
	Model	Brand	Ice Type	Max Production
	C1848SR-32 (Energy Star) 208-230/60/1		Small Cube	1,828 lbs. 24/HR
	C1848SR-3 (Energy Star) 208-230/60/3		Small Cube	1,828 lbs. 24/HR
CIM2046/2047 Dimensions: 48.25"W x 24.25"D x 26"H	REMOTE-COOLED (Use with RCA-3561 Condenser)
	Model	Brand	Ice Type	Max Production
	CIM2046HR		Half-cube	1,830 lbs. 24/HR
	CIM2047HR		Half-cube	1,860 lbs. 24/HR
	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	CIM2046HW		Half-cube	1,860 lbs. 24/HR
	CIM2047HW		Half-cube	1,860 lbs. 24/HR
iT1900 INDIGO NXT Dimensions: 48"W x 24"D x 29.5"H Recommended Bin:D-970	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	IYT1900A		Half-Dice	1,900 lbs. 24/HR
C1848WCRC Dimensions: 48"W x 24"D x 29"H Recommended Bin/s: BH1300BB/BH1300SS BH1600BB/BH1600SS	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	C1848SW-32 208-230/60/1		Small Cube	1,900 lbs. 24/HR
C1848AC Dimensions: 48"W x 24"D x 29"H Recommended Bin/s: BH1300BB/BH1300SS BH1600BB/BH1600SS	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	C1848SA-6 230/50/1		Small Cube	1,909 lbs. 24/HR
	C1848SA-32 208-230/60/1		Small Cube	1,909 lbs. 24/HR
C2148 Dimensions: 48"W x 24"D x 29"H Recommended Bin/s: BH1600BB/BH1600SS	REMOTE-COOLED (Use with PRC241-32 Condenser)
	Model	Brand	Ice Type	Max Production
	C2148SR-32 208-230/60/1		Small Cube	1,965 lbs. 24/HR
	C2148SR-3 208-230/60/3		Small Cube	1,965 lbs. 24/HR
C2648 Dimensions: 48"W x 28.5"D x 34"H Recommended Bin/s: BH1600BB/BH1600SS	REMOTE-COOLED (Use with PRC241-32 Condenser)
	Model	Brand	Ice Type	Max Production
	C2648SR-3 208-230/60/3		Small Cube	2,630 lbs. 24/HR
QUADZILLA SF-3000C Dimensions: 48"W x 31"D x 36"H Recommended Bin/s: F-1300/F-1325	AIR-COOLED
	Model	Brand	Ice Type	Max Production
	SYF-3000C		Half-Dice	2,950 lbs. 24/HR
	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	SYT-3000W		Half-Dice	3,200 lbs. 24/HR

SPECIALTY HALF-DICE MACHINES

NOTE: Water-cooled commercial ice makers can consume upwards of 200 gallons of water a day. This type of commercial commercial ice maker is generally recommended for facilities located in an environment that is too hot for an air-cooled machine. Hot environments can also benefit from a remote system where the compressor and condenser are placed in another room or outside although this will require the services of a refrigeration technician.

Recommendation: The production level of commercial ice ice maker depends a lot on water temperature. If water is very warm, there is going to be a difference in how much ice it can produce. You need to have cold water and normal ambient temperature to ensure maximum output. A heat exchanger like the System IV ChillTech is a great way to do just that. You can expect a 20% increase in the amount of ice you make for lower energy consumption.

Marine Modular Half-Dice Ice Machines Designed for use on a yacht, ship, or anywhere near saltwater
IT0900WM Dimensions: 30"W x 24.5" D x 26.5"H Recommended Bin: IBW-M4 Marine Bin	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	IYT0900WM		Half-dice	722 lbs. 24/HR
IT1900WM Dimensions: 48"W x 24.5"D x 29.5"H Recommended Bin: IBW-M4 Marine Bin	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	IYT1900WM		Half-Dice	1,930 lbs. 24/HR
SpaceMaker Marine Series
SpaceMaker™ IT1900W (bin sold separately) Dimensions: 48"W x 23.5"D x 29.5"H Recommended Bin: IBW-M5 Marine Bin	WATER-COOLED
	Model	Brand	Ice Type	Max Production
	IYT1900W		Half-Dice	1,930 lbs. 24/HR

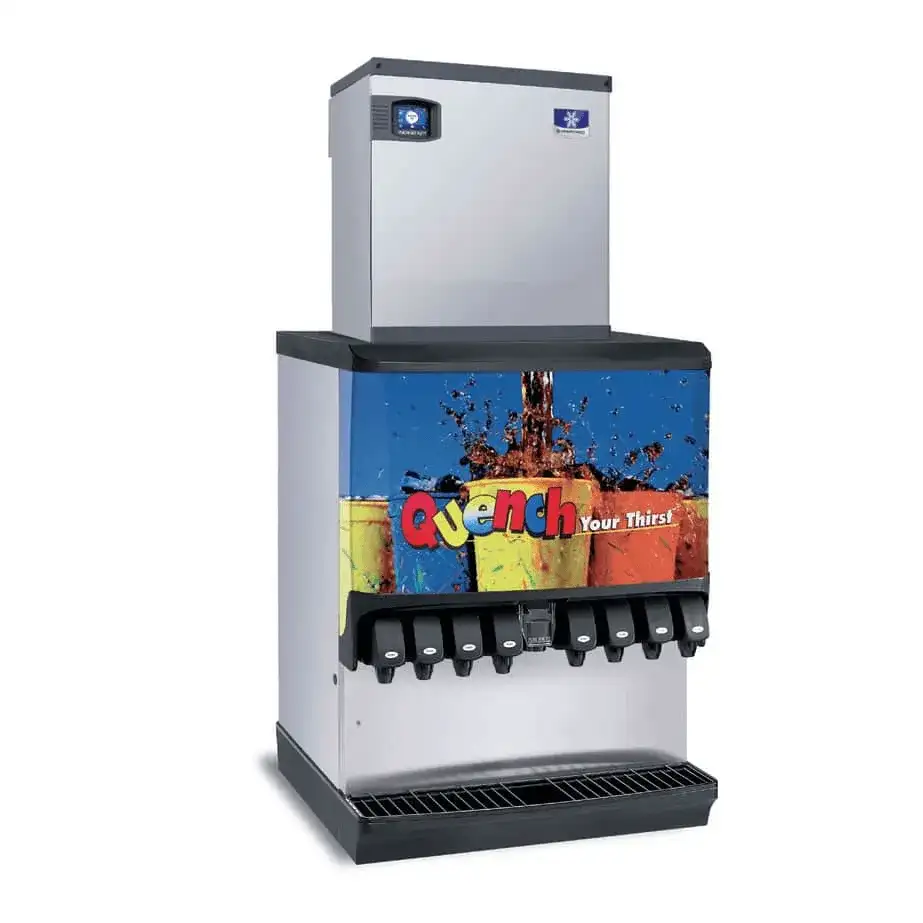

Ice/Beverage Series Specifically designed for beverage/soda dispensers
IBF SERIES Dimensions: 22"W x 14"D x 24" to 26.5"H Recommended Dispenser: Servend SV-250	REMOTE-COOLED IBF-0620C requires CVDF-0600 Condenser; CVDF-0900 Condenser for IBF-0820C
	Model	Brand	Ice Type	Max Production
	IBF-0620C (dispenser sold separately)		Half-Dice	625 lbs. 24/HR
	IBF-0820C (dispenser sold separately)		Half-Dice	825 lbs. 24/HR
IBT SERIES Dimensions: 22"W x 24"D x 30.5"H Recommended Dispenser: Servend SV-250	REMOTE-COOLED Use with CVDT-1200A Condenser
	Model	Brand	Ice Type	Max Production
	IBT-1020C (dispenser sold separately)		Half-Dice	1,206 lbs. 24/HR

Half-Cube Ice Machine Selection Guide: Manitowoc, Scotsman, and Ice-o-Matic

NEO® 140

ICEU150

NEO® 140/190

NEO® 240

NEO® 240

ICEU220

ICEU226

ICEU220

CU3030

NEO® 310

NEO® 310

ICEU300

IYT0300

CU3030

ICEU305

CIM0330

CIM0320/0325/0326

CIM0330

IYP0320

CIM0320/0325/0326

C0322AC

C0322WC

C0330AC

C0330WC

CIM0430/435

IYP0500

iT0420 INDIGO NXT

CIM0430/0436/0435

iT0450 INDIGO NXT

C0522AC

C0530AC

C0522WC

iT0420 INDIGO NXT

iT0450 INDIGO NXT

C0530WCRC

IYF0500

C0530AC

CIM0530/0535

CIM0535

iT0500 INDIGO NXT

CIM0520/0525/0526

iT0620 INDIGO NXT

CIM0520/0525/0526

CIM0530/0535

iT0620 INDIGO NXT

CIM0520

CIM0530

CIM0636/0635

C0630WCRC

CIM0636

C0630WCRC

QUIETQUBE IYF0600C

C0630AC

IYF0600

C0630AC

IYT0750

iT0900 INDIGO NXT

C0722

IYT0750

C0830AC

EH222

QUIETQUBE IYF0900C

iF0900 INDIGO NXT

C0830WCRC

iT0900 INDIGO NXT

CIM0826/0825

CIM0836/0835

iF0900 INDIGO NXT

C0830AC

CIM0836/0835

C1030AC

CIM1136/1135/1137

CIM0826

C0830WCRC

CIM1136/1135/1137

CIM1126

CIM1136/1135/1137

C1030WCRC

C1030WCRC
